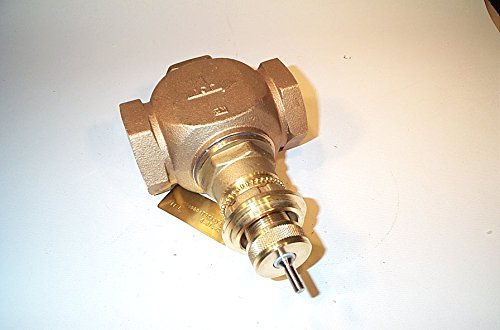

Johnson Controls VG7243PT+822D00 Stainless Steel Trim Globe Valve Pneumatic Actuator

Product Description

The Johnson Controls VG7243PT+822D00 is a high-performance globe valve featuring durable stainless steel trim and efficient MP82 Series pneumatic actuators. This valve is ideal for controlling hot or chilled water and can handle up to 100 psig of saturated steam.

• Designed for HVAC applications including water and steam control.
• Spring-loaded PTFE and elastomer V-rings ensure reliable sealing.
• Supports fluid temperatures ranging from 35 to 338 degrees Fahrenheit.

Product Highlights

With a static pressure rating of ANSI Class 250, this valve offers robust performance for industrial installations. It comes ready for either factory or field assembly, and can manage a maximum supply air pressure of 25 psig (172 kPa).

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7243PT+822D00

Technical Specifications

• Type: Globe Valve
• Material: Stainless Steel Trim
• Actuator: Pneumatic, MP82 Series
• Supply Air Pressure: Maximum 25 psig
• Fluid Temperature Range: 35 to 338 degrees Fahrenheit
• Steam Pressure Capacity: Up to 100 psig
• Pressure Rating: ANSI Class 250
