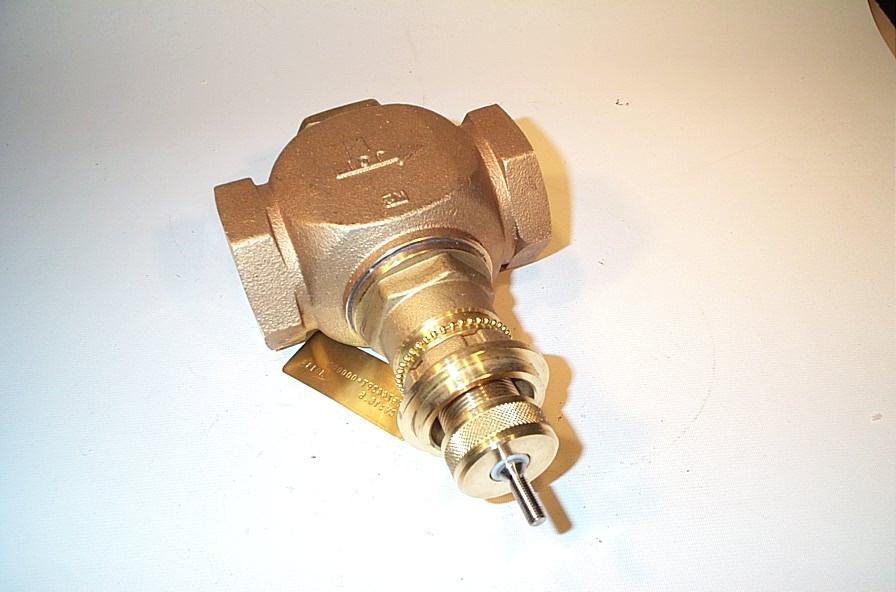

Johnson Controls VG7243PT+3008B Stainless Steel Trim Globe Valve VG7000 Series Pneumatic Actuator

Product Description

The Johnson Controls VG7243PT+3008B globe valve features a robust stainless steel trim and is equipped with a V-3000 pneumatic actuator, designed for regulating hot and chilled water flow, as well as steam up to 100 psig. Ideal for HVAC systems requiring reliable temperature control.

• Equipped with a rugged V-3000 pneumatic actuator suitable for high-demand applications
• Handles fluid temperatures ranging from 35 to 338 degrees Fahrenheit
• ANSI Class 250 static pressure rating ensures durability under varying pressure conditions

Product Highlights

This valve offers precision water and steam flow control in heating, ventilation, and air conditioning systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7243PT+3008B

Technical Specifications

• Type: Globe Valve
• Body Material: Stainless Steel
• Actuator Type: Pneumatic, V-3000 Series
• Fluid Temperature Range: 35 to 338°F
• Steam Pressure Capability: Up to 100 psig
• Supply Air Pressure: Maximum 25 psig
• Pressure Rating: ANSI Class 250
