Johnson Controls VG7243PT 1-1/4 Inch 2WAY PDTC SS 18.5cvBODY Valve

Product Description

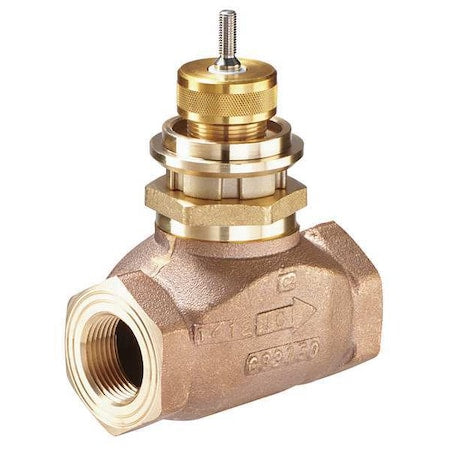

The Johnson Controls VG7243PT Globe Valve is a top choice for HVAC professionals seeking precise control over HVAC systems using either hot or chilled water or steam. This valve is built with a stainless steel trim and operates in a two-way push-down-to-close configuration,

• ANSI Class 250 compliance ensures performance under demanding conditions.
• Features tight shutoff capabilities for enhanced occupant comfort and energy efficiency.
• Offers easy field retrofit or mounting possibilities owing to its complete actuator interchangeability.

Product Highlights

This valve series is crafted to handle a wide range of applications, from commercial HVAC installations to complex industrial systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7243PT

Technical Specifications

• Material: Cast Bronze, Stainless Steel Trim
• Type: 2-Way Globe Valve
• Connection Type: NPT 1.25 Inch
• Flow Capacity: 18.5 Cv
• Max. Water Temperature: 338 degrees Fahrenheit
• Operating Pressure: 308 psi water, 100 psi steam
• Actuator Compatibility: Compatible with M9000 Series and Pneumatic Actuators
