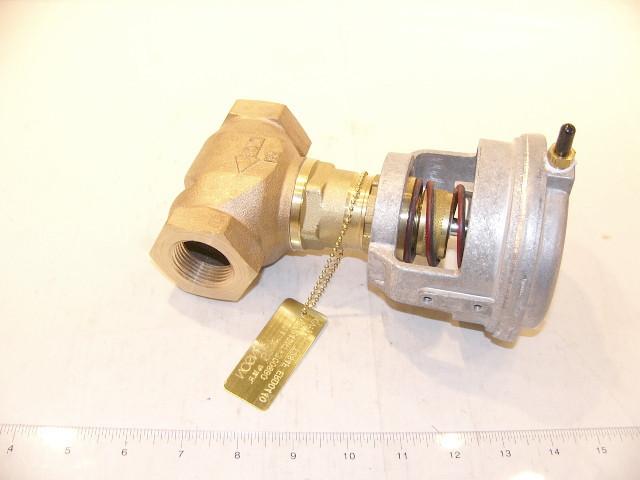

Johnson Controls VG7243NT+822D00 Stainless Steel Trim Globe Valve 1 Pack

Product Description

The Johnson Controls VG7243NT+822D00 is a high-performance stainless steel trim globe valve designed for controlling hot or chilled water and saturated steam up to 100 psig. This valve is equipped with the MP82 Series Pneumatic Actuators for reliable operation and effective flow management within HVAC systems.

• Designed to control hot or chilled water and 100 psig saturated steam
• Spring-loaded PTFE and elastomer V-rings ensure tight sealing and durability
• ANSI Class 250 static pressure rating for robust industrial applications

Product Highlights

The valve offers precise flow control and is suitable for a wide range of temperatures from 35 to 338 degrees Fahrenheit. It's ideal for both factory and field assemblies, providing flexibility in installation.

Product Information

Standard Information

• Manufacturer: Johnson Controls, Inc
• Supply air pressure max: 25 psig (172 kPa)

Technical Specifications

• Weight: 17.64 lbs
• Series: VG7000
• Type: Globe Valve with Pneumatic Actuator
• Fluid temperature range: 35 to 338 degrees Fahrenheit
• Valve body rating: ANSI Class 250
