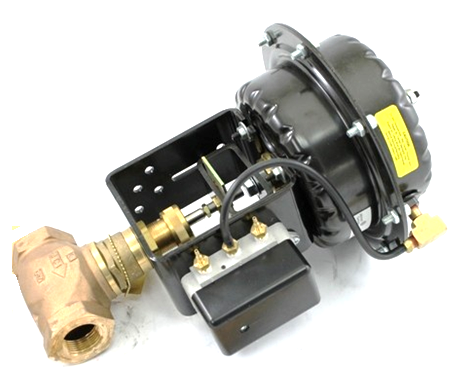

Johnson Controls VG7243NT 822C01 Globe Valve Assembly 2 Way 1 in. Replacement MPN

Product Description

The Johnson Controls VG7243NT+822C01 is a globe valve assembly designed for HVAC systems. This two-way valve is one inch in size. It features a bronze body and a stainless steel stem and seat. The valve is suitable for various fluid types including hot water, chilled water, and glycol solutions.

• Industrial-grade construction for durability.
• Electro-painted finish provides corrosion resistance.
• Spring-loaded PTFE and elastomer V-rings for effective sealing.

Product Highlights

This assembly promotes efficient fluid control in HVAC applications, making it ideal for professional use in HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7243NT+822C01

Technical Specifications

• Housing: Die-formed carbon steel
• Service: Hot water, chilled water, glycol solutions, and saturated steam
• Close-off Pressure: 209 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Valve Body Static Pressure Rating: ANSI Class 250
• Spring Range: 3 to 7 psig
