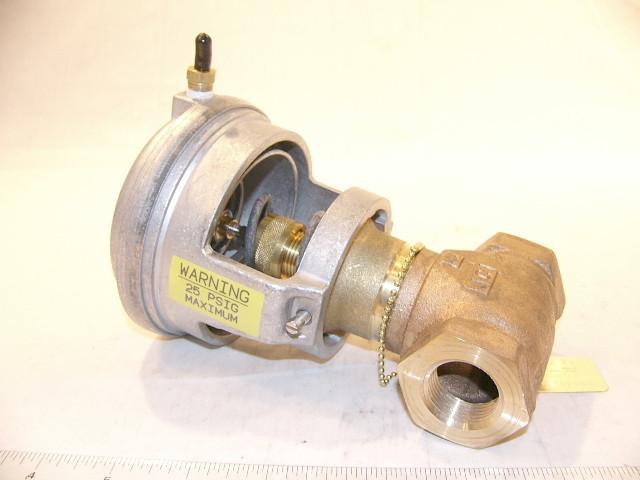

Johnson Controls VG7243LT+3003D Stainless Steel Trim Globe Valve Pneumatic Actuator

Product Description

The Johnson Controls VG7243LT+3003D valve integrates a stainless steel globe valve with a V-3000 pneumatic actuator for reliable control of water and steam flows. Designed for both hot and chilled water systems or up to 100 psig saturated steam, this valve assembly is robust for commercial and industrial HVAC systems.

• ANSI Class 250 body static pressure rating for high durability and performance
• Pneumatic actuator for precise control with a spring range of 4-8 psig
• Fluid temperature range from 35 to 338 degrees Fahrenheit, accommodating various system conditions

Product Highlights

This valve is particularly effective for use in large-scale heating, ventilation, and air conditioning systems, providing a high level of control and reliability.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7243LT+3003D

Technical Specifications

• Body Material: Stainless Steel
• Valve Type: Globe Valve
• Actuator Type: Pneumatic V-3000
• Supplied Air Pressure: Max 25 psig
• Operating Temperature Range: 35 to 338 degrees Fahrenheit
• Connection Size: 3/4 inch
