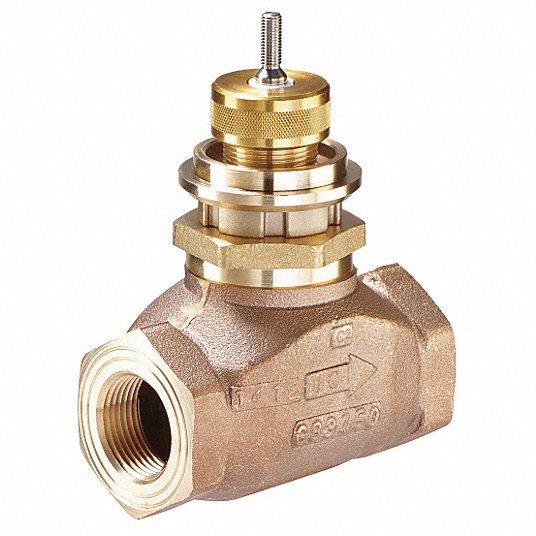

Johnson Controls VG7243LT+3003B Globe Valve Assembly 2 Way 3/4 in.

Product Description

The Johnson Controls VG7243LT+3003B is a globe valve assembly designed for effective control of fluid flow in HVAC systems. This 2-way valve features a three-quarter inch connection and is optimized to handle various applications, including hot water, chilled water, and steam. It comes equipped with a pneumatic actuator and offers a reliable performance across different operating conditions.

• Effective diaphragm area measuring eight square inches.
• Factory or field assembly options available.
• Works within a temperature range of thirty-five degrees Fahrenheit to three hundred thirty-eight degrees Fahrenheit.

Product Highlights

This valve is suitable for HVAC control, maintaining precise flow regulation in diverse heating and cooling applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7243LT+3003B
• Minimum Order Quantity: 1

Technical Specifications

• Service: Hot Water, Chilled Water, Glycol Solutions, Steam
• Flow Characteristic: Equal Percentage
• Close-off Pressure: 108 psig
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Housing: Rugged Die-Cast Enclosure
