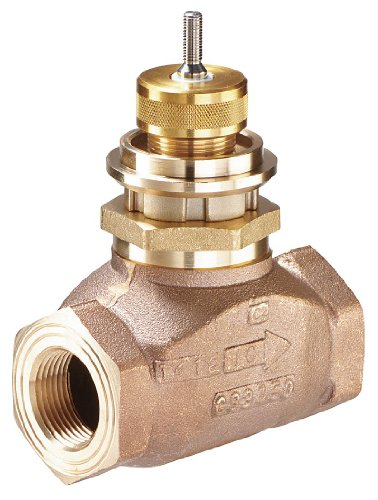

Johnson Controls VG7243LT Series VG7000 Bronze Globe Valve Two-Way Push-Down-to-Close Stainless Steel Trim NPT End Connection 3/4 Valve Size 7.3 Cv

Product Description

The Johnson Controls VG7243LT, part of the VG7000 Series, is a 3/4-inch, two-way, push-down-to-close bronze globe valve designed for HVAC systems. It dynamically regulates the flow of water or steam in response to a controller’s demand. Built with electrical or pneumatic actuators, it offers flexibility in terms of operability.

• ANSI Class 250 standard compliant
• Tight shutoff ensures optimal energy conservation
• Interchangeable actuators for easy retrofit

Product Highlights

This valve is suitable for various applications, including heating, cooling, and ventilation. Constructed with a brass body, stainless steel stem, and PTFE seat, it is built to withstand industrial demands. Its Cv of 7.3 and pressure rating of 150 psi ensure reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG7243LT

Technical Specifications

• Valve Size: 3/4 inch
• Connection Type: NPT
• Coefficient of Volume (Cv): 7.3
• Pressure Rating: 150 psi
• Material: Bronze body, stainless steel trim
• Operating Temperature: Up to 338 degrees Fahrenheit
• Max Steam Pressure: 100 psi
• Max Water Pressure: 308 psi
