Johnson Controls VG7243GT423AGA Globe Valve Assembly 2 Way 1/2 in.

Product Description

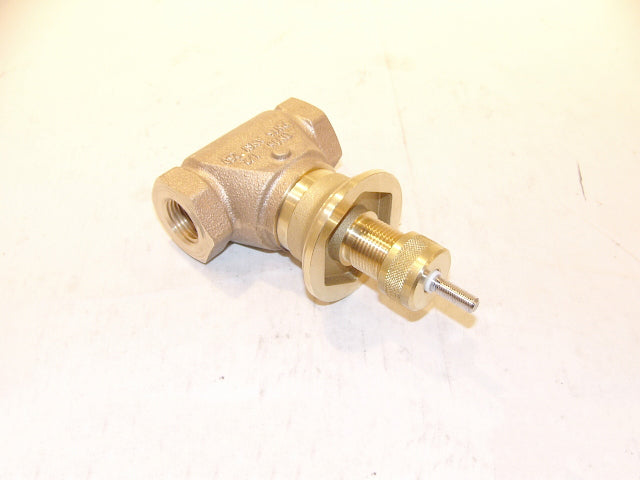

The Johnson Controls VG7243GT423AGA is a globe valve assembly suitable for 2-way applications. It features a bronze body and stainless steel stem. This valve is designed for a direct coupled electric actuator with specifications to handle various HVAC systems.

• NPT connection
• 4.6 Cv flow coefficient
• Floating control, 61 in-lb torque

Product Highlights

This valve is ideal for controlling water flow in heating and cooling systems

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7243GT+423AGA

Technical Specifications

• NEMA Rating: NEMA 2, IP42
• Service Compatibility: Hot water, chilled water, 50/50 glycol solutions, steam
• Power Consumption: 12 VA
• Close-off Pressure: 130 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 250 F (2 C to 121 C)
• Electrical Connection: 48 in. cable with 20 AWG wire leads
• Actuator Operating Conditions: -4 F to 122 F (-20 C to 50 C)
