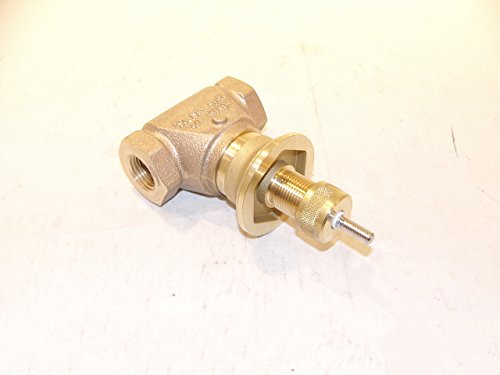

Johnson Controls VG7243GT+3008B Stainless Steel Trim Globe Valve 1/2 Inch

Product Description

The Johnson Controls VG7243GT+3008B Stainless Steel Trim Globe Valve is designed for controlling hot or chilled water and saturated steam in HVAC systems. Its robust pneumatic actuator ensures reliable operation under various temperature conditions ranging from 35 to 338 degrees Fahrenheit.

• Compatible with water and 100 psig saturated steam.
• Maximum supply air pressure of 25 psig.
• ANSI Class 250 body static pressure rating.

Product Highlights

This valve features a rugged actuator with a die-cast enclosure, optimized for VG7000 valves from 1/2 to 1-1/4 inches, ensuring durability and performance.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Product Type: Valve
• Brand: Johnson Controls

Technical Specifications

• Part ID / MPN: VG7243GT+3008B
• Weight: 3.72 lbs
• Valve Size: 1/2 inch
• Control: Pneumatic Actuator
• Temperature Range: 35 to 338 degrees Fahrenheit
• Pressure: up to 100 psig
