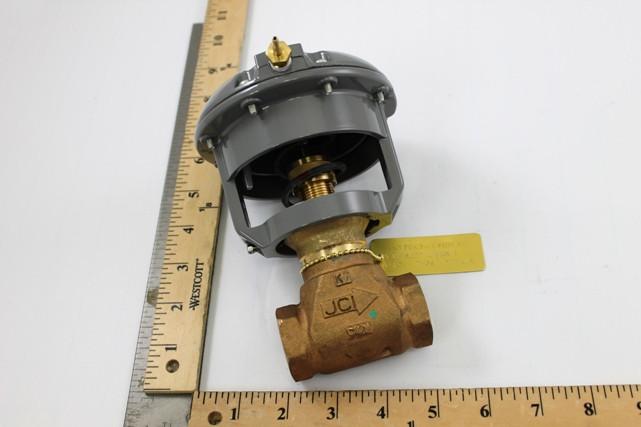

Johnson Controls VG7243ET+821E01 Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7243ET+821E01 is a globe valve assembly designed for HVAC applications. This product features a two-way operation with a half-inch connection. Suitable for both hot and chilled water systems, it offers reliable flow control.

• Industrial-grade, drawn-steel actuator
• Corrosion-resistant, electro-painted finish
• Pneumatic actuator with barbed fitting for polytubing

Product Highlights

This valve is ideal for efficient fluid control in HVAC systems, with a maximum static pressure rating of ANSI Class 250.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7243ET+821E01

Technical Specifications

• Housing: Die-Formed Carbon Steel
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and 38 psig Saturated Steam
• Close-off Pressure: 308 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Spring Range: 9 to 13 psig
