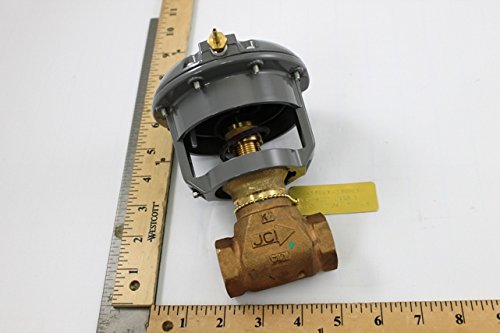

Johnson Controls VG7243ET+821C00 Series VG7000 Model VG7243ET Stainless Steel Trim Globe Valve with Model MP821C001B/MP822C001A/MP823C001A Pneumatic Actuator 3-7 psig Spring Range

SKU: VG7243ET+821C00
Availability: Out Of Stock
$21.99
$21.99
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Johnson Controls VG7243ET+821C00 is part of the VG7000 Series. This stainless steel trim globe valve is equipped with an MP821C001B/MP822C001A/MP823C001A pneumatic actuator. Designed to control hot or chilled water, or 100 psig saturated steam, it ensures reliable performance in various industrial applications.

  • Industrial-grade, drawn-steel actuator
  • Maximum supply air pressure of 25 psig (172 kPa)
  • Fluid temperature range: 35 to 338°F (2 to 170°C)

Product Highlights

This valve features a packing system with spring-loaded PTFE and elastomer V-rings. It operates under a valve body static pressure rating of ANSI Class 250 and can be assembled in the factory or field.

Product Information

Standard Information

  • Brand: Johnson Controls
  • MPN: VG7243ET+821C00

Technical Specifications

  • Valve Series: VG7000
  • Actuator Model: MP821C001B/MP822C001A/MP823C001A
  • Material: Stainless Steel Trim
  • Applications: Hot or chilled water, 100 psig saturated steam
  • Packing: Spring-loaded PTFE and elastomer V-rings
  • Maximum Supply Air Pressure: 25 psig (172 kPa)
  • Fluid Temperature Range: 35 to 338°F (2 to 170°C)
  • Valve Body Static Pressure Rating: ANSI Class 250
Johnson Controls VG7243ET+821C00 Series VG7000 Model VG7243ET Stainless Steel Trim Globe Valve with Model MP821C001B/MP822C001A/MP823C001A Pneumatic Actuator 3-7 psig Spring Range

Vendor: JOHNSON CONTROLS

Johnson Controls VG7243ET+821C00 Series VG7000 Model VG7243ET Stainless Steel Trim Globe Valve with Model MP821C001B/MP822C001A/MP823C001A Pneumatic Actuator 3-7 psig Spring Range

$21.99

Vendor: JOHNSON CONTROLS

Johnson Controls VG7243ET+821C00 Series VG7000 Model VG7243ET Stainless Steel Trim Globe Valve with Model MP821C001B/MP822C001A/MP823C001A Pneumatic Actuator 3-7 psig Spring Range

$21.99
