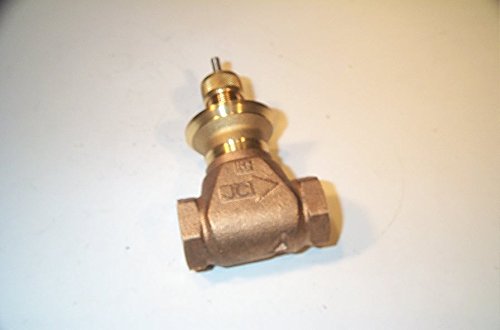

Johnson Controls VG7243ET+3008D Stainless Steel Trim Globe Valve 1/2 Inch

Product Description

The Johnson Controls VG7243ET+3008D is a high-performance stainless steel trim globe valve equipped with a V-3000 pneumatic actuator, designed for precise control of hot or chilled water and saturated steam in HVAC systems. With a 4-8 psig spring range, this valve ensures reliable operation and effective fluid management.

• Designed for hot/chilled water and 100 psig saturated steam
• Maximum supply air pressure of 25 psig
• Fluid temperature range from 35 to 338 degrees Fahrenheit

Product Highlights

Featuring a robust die-cast actuator enclosure, this valve fits seamlessly onto VG7000 valves ranging from half an inch to one and a quarter inches. This model supports both factory and field assembly, enhancing its versatility and application scope across various industrial settings.

Product Information

Standard Information

• Valve type: Globe Valve
• Actuator type: Pneumatic

Technical Specifications

• Body Material: Stainless Steel
• Pressure Range: 4-8 psig
• Temperature Capability: 35 to 338 degrees Fahrenheit
• Static Pressure Rating: ANSI Class 250
