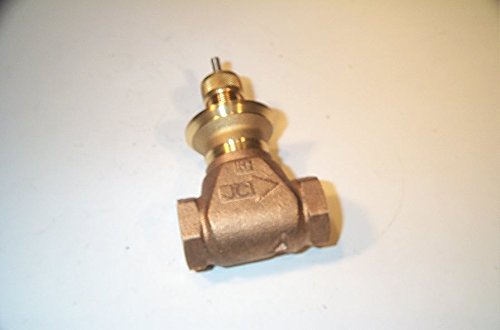

Johnson Controls VG7243ET+3008B Globe Valve Stainless Steel Trim Pneumatic Actuator

Product Description

The Johnson Controls VG7243ET+3008B globe valve is engineered to handle demanding HVAC system requirements. Designed for both hot and chilled water applications, this valve also accommodates up to 100 psi of saturated steam. These capabilities make it suitable for a wide range of medium pressure applications.

• Equipped with a V-3000 pneumatic actuator for reliable operation.
• Constructed with stainless steel trim for enhanced durability and longevity.
• Supports a fluid temperature range from 35 to 338 degrees Fahrenheit.

Product Highlights

This valve's robust design is ideal for systematic control of HVAC environments. Its build supports ANSI Class 250 static pressure ratings, indicating its strength and versatility under various operational pressures.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7243ET+3008B

Technical Specifications

• Maximum Supply Air Pressure: 25 psig
• Valve Body Static Pressure Rating: ANSI Class 250
• Actuator Type: Pneumatic
• Connection Size: 1/2 inch
• Flow Coefficient (Cv): 1.8
• Fluid Temperature Range: 35 to 338 degrees Fahrenheit
