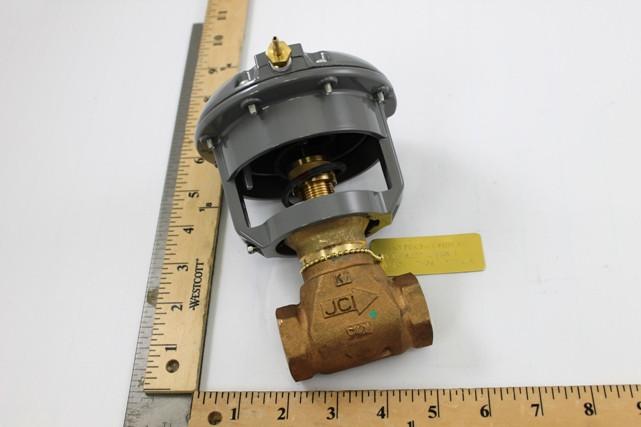

Johnson Controls VG7243ET+3003D Series VG7000 Globe Valve Stainless Steel Trim Pneumatic Actuator

Product Description

The Johnson Controls VG7243ET+3003D globe valve effectively manages the flow of hot or chilled water and steam up to 100 psig. Its robust design features a stainless steel trim and a V-3000 pneumatic actuator, engineered for precise fluid control.

• Optimal for controlling hot or chilled water and up to 100 psig saturated steam.
• Incorporates a V-3000-8003 enclosed pneumatic actuator for reliable performance.
• Factory or field assembly options for versatile installation.

Product Highlights

Johnson Controls' commitment to quality is evident in the VG7243ET+3003D, with its ANSI Class 250 rating for valve body static pressure and a maximum supply air pressure of 25 psig.

Product Information

Standard Information

• Fluid temperature range: 35 to 338 degrees Fahrenheit
• Maximum supply air pressure: 25 psig

Technical Specifications

• Valve size: 1/2 inch
• Spring range: 4-8 psig
• Material: Stainless Steel trim
• Actuator type: V-3000-8003 enclosed pneumatic
