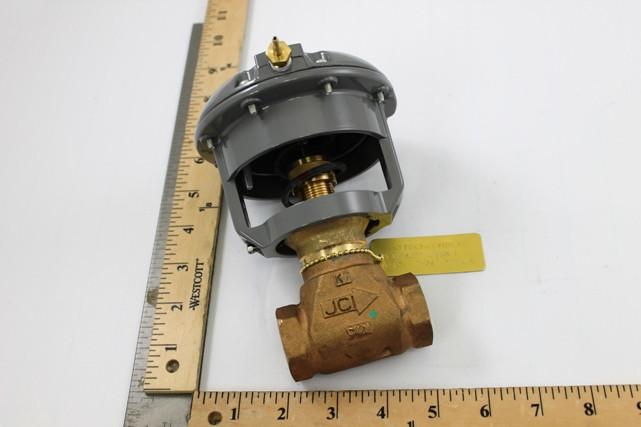

Johnson Controls VG7243CT 821D01 Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7243CT+821D01 is a globe valve assembly designed for HVAC systems. This model features a two-way operation with a half-inch connection, making it suitable for various applications, including hot water, chilled water, and steam systems.

• NPT connection with 0.73 Cv flow rating
• Corrosion-resistant bronze body with stainless steel stem and seat
• Pneumatic actuator compatible with barbed fitting for 1/4 inch O.D. polytubing

Product Highlights

This valve assembly offers reliable performance, ideal for both factory and field installations. It supports a spring range of four to eight psig for optimal control.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7243CT+821D01

Technical Specifications

• Housing: Die-Formed Carbon Steel
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and 38 psig Saturated Steam for HVAC Systems
• Close-off Pressure: 308 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
