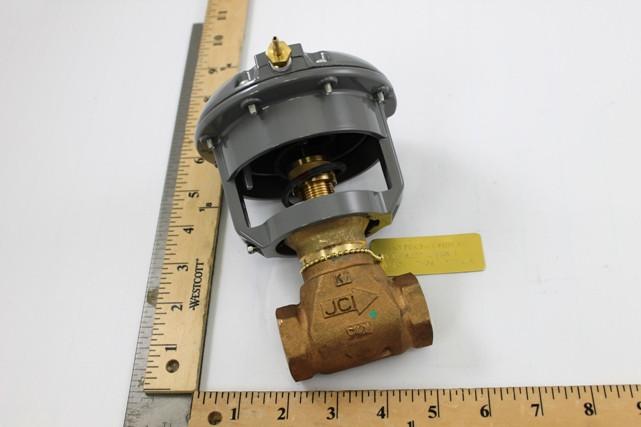

Johnson Controls VG7243CT+821D00 Stainless Steel Trim Globe Valve Pneumatic Actuator

Product Description

Explore the efficiency of the Johnson Controls VG7243CT+821D00, a stainless steel trim globe valve complemented by a pneumatic actuator. This precision-engineered valve controls the flow of hot or chilled water and can handle up to 100 psig of saturated steam. It's ideally suited for industrial environments requiring reliable, high-performance fluid management solutions.

• Designed for both hot and chilled water applications
• Supports 100 psig saturated steam
• Fitted with a high-performance MP82 series pneumatic actuator

Product Highlights

The VG7243CT+821D00 model features a spring-loaded PTFE and elastomer V-ring packing, ensuring a tight seal and extended durability under varying conditions. With a maximum supply air pressure of 25 psig and fluid temperature capability ranging from 35 to 338 degrees Fahrenheit, this valve is engineered to perform in a broad range of operating environments.

Product Information

Technical Specifications

• Valve Type: Globe Valve
• Material: Stainless Steel Trim
• Actuator Type: Pneumatic
• Spring Range: 4-8 psig
• Max Fluid Temperature: 338 degrees Fahrenheit
• Max Air Supply Pressure: 25 psig
• Static Pressure Rating: ANSI Class 250
• Compatibility: Hot or chilled water, 100 psig saturated steam
