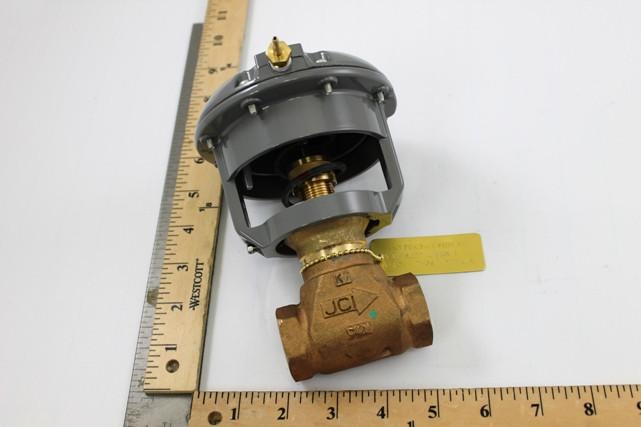

Johnson Controls VG7243CT+821C01 Globe Valve Assembly, 2 Way 1/2 in.

Product Description

The Johnson Controls VG7243CT+821C01 is a globe valve assembly designed for two-way flow. This valve is suitable for various HVAC applications, including hot water, chilled water, and glycol solutions.

• Industrial-grade, drawn-steel actuator.
• Corrosion-resistant, electro-painted finish.
• Factory or field assembly options.

Product Highlights

This globe valve features a 0.73 Cv rate and is equipped with a pneumatic actuator. It also has barbed fittings for one-fourth inch outer diameter polytubing and operates within a spring range of three to seven psi.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7243CT+821C01

Technical Specifications

• Housing: Die-formed carbon steel
• Service: Hot water, chilled water, 50/50 glycol solutions, and thirty-eight psig saturated steam for HVAC systems
• Close-off Pressure: 308 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
