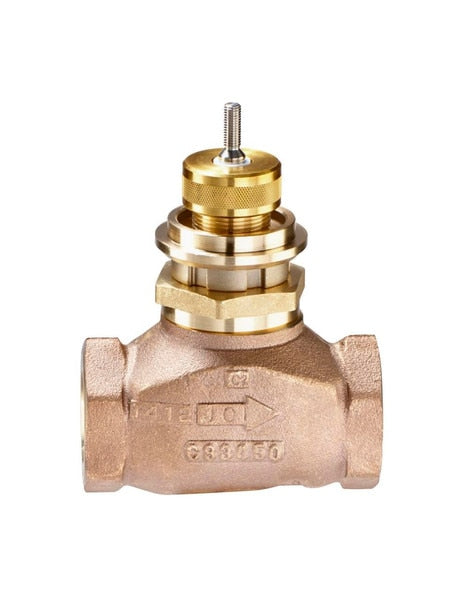

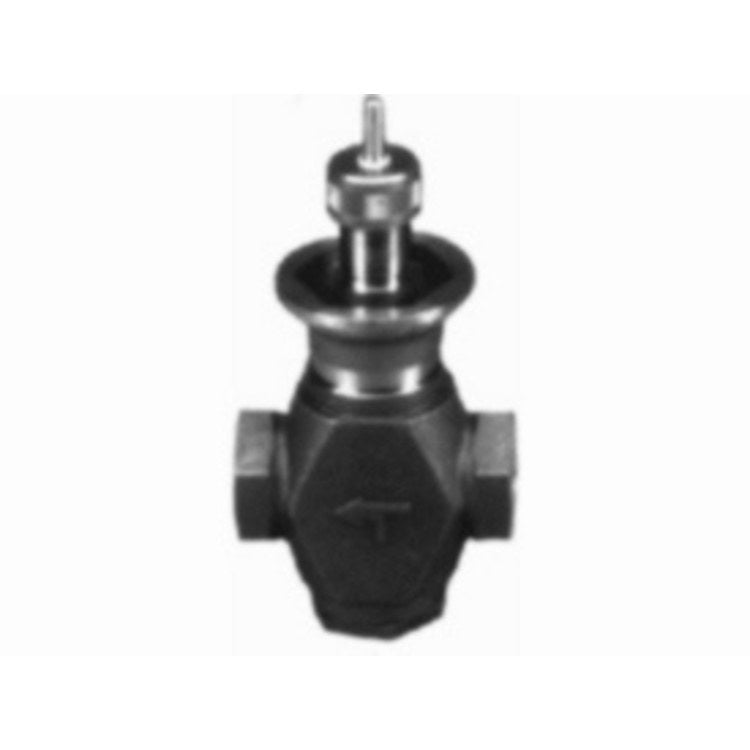

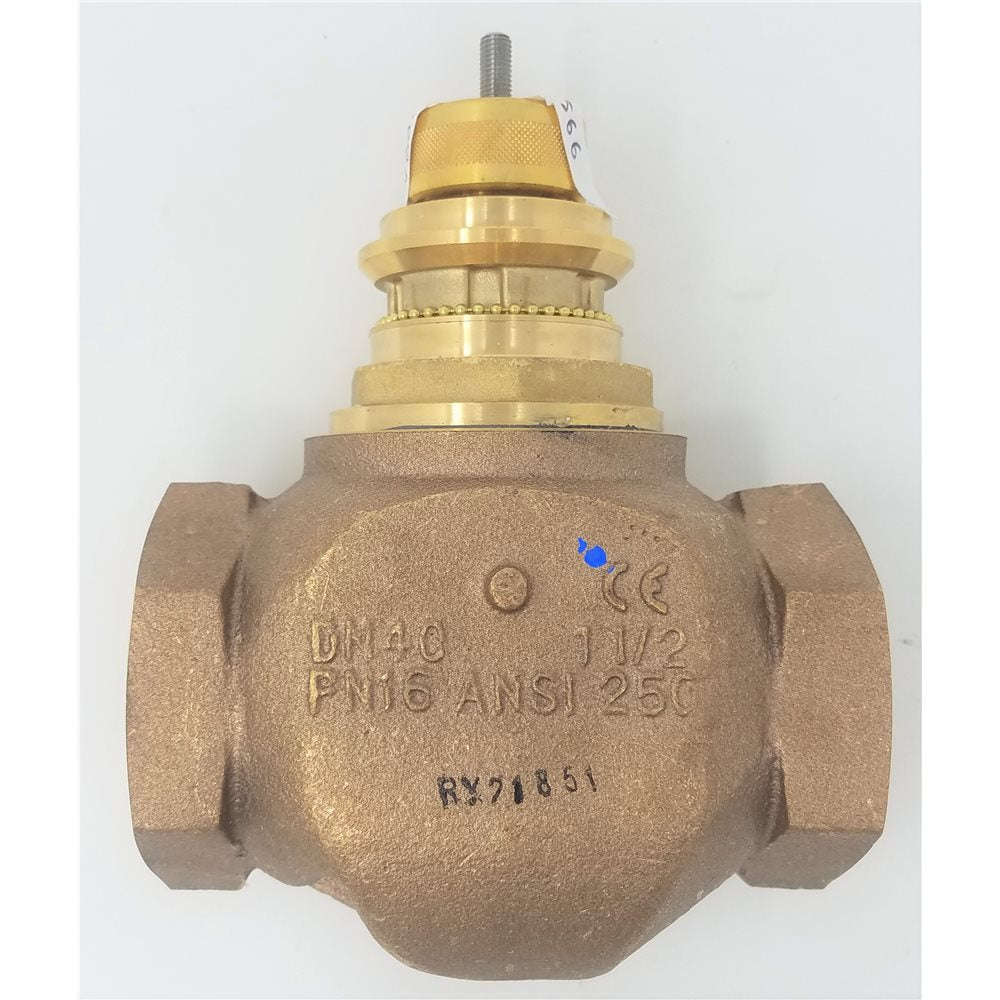

Johnson Controls VG7241ST Globe Valve, 2 Way, 2 in. 46.2 Cv

Product Description

The JOHNSON CONTROLS VG7241ST globe valve is a 2-way valve with a 2-inch NPT connection and a 46.2 Cv flow coefficient. Designed to regulate the flow of hot or chilled water, 50/50 glycol solution, and steam in HVAC systems. Features a bronze body, stainless steel stem, and brass seat.

• Suitable for hot water, chilled water, 50/50 glycol solutions, and steam for HVAC systems
• Features a 2-inch NPT connection
• Designed with a bronze body, stainless steel stem, and brass seat

Product Highlights

This globe valve is ideal for regulating flow in HVAC systems, offering durability and precise control.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG7241ST
• Country of Origin: Mexico

Technical Specifications

• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, And Steam For HVAC Systems
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F To 248 F (2 C To 120 C)
• Brand: Johnson Controls
• Product Type: VALVE
• Size: 2 in
• Flow Rate: 46.2Cv
• End Connection: NPT
• Material: Bronze
• Pressure: 25PSIG Air Pressure, 38PSIG Saturated Steam
• Stem Type: Standard
• Temperature: 35 to 284DEG F
• Application: HVAC System
• CV: 46.2
• Trim: Brass
• Assembly: Valve Only
• Pipe Size: 2 in
• Connection: NPT
• Valve Type: 2-Way
• Fail Safe Position: Normally Open
• Connection Type: Threaded
• Flow Capacity (Cv): 46.2
• Depth: 4 1/4 in
• Width: 5 29/32 in
• Height: 6 3/16 in
• Includes: Valve Only
• For Use With: M9000 Series Actuators and Pneumatic Actuators
• Valve Design: 2-Way
• Body Material: Bronze
• Configuration: Normally Open
• Trim Material: Brass
• Connection Size: 2 in
• Max. Water Temp.: 284 Degrees F
• Coefficient of Volume: 46.2
• Safe Working Steam Pressure: 38 psi
• Safe Working Water Pressure: 308 psi
• MPN: VG7241ST
• Valve Number: VG7241ST
• Model / MPN: VG7241ST
• Pattern: 2-way
