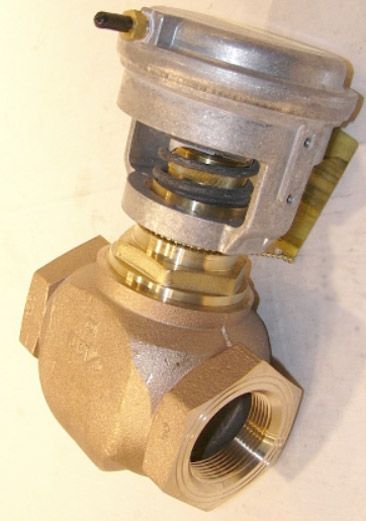

Johnson Controls VG7241ST+3008B Globe Valve Assembly 2 Way 2 in.

Product Description

The Johnson Controls VG7241ST+3008B is a reliable globe valve assembly designed for HVAC applications. This two-way, normally open valve connects using a two-inch NPT and features an actuator with a pressure range of three to six psig and a flow capacity of 46.2 Cv.

• Constructed with a bronze body for durability.
• Includes a stainless steel stem and brass seat.
• Pneumatic actuator with spring return functionality.

Product Highlights

This valve is ideal for hot water, chilled water, glycol solutions, and steam applications within HVAC systems. Its design allows for effective regulation of flow and temperature, ensuring efficient operation.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7241ST+3008B

Technical Specifications

• Valve Type: Two Way, Normally Open
• Body Material: Bronze
• Stem Type: Standard Threaded Stem
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Max Pressure: 15 psi WSP, 125 psi WOG
• Weight: 15.00 lbs
