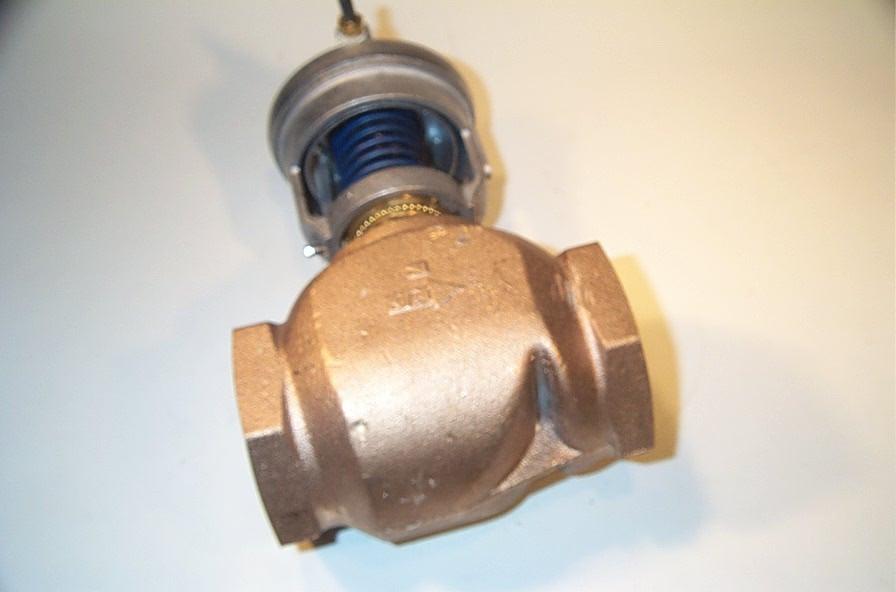

Johnson Controls VG7241ST+3003E Brass Trim Globe Valve with Pneumatic Actuator - ANSI Class 250

Product Description

The Johnson Controls VG7241ST+3003E brass trim globe valve is equipped with a V-3000-8003 pneumatic actuator, optimized for controlling hot or chilled water and up to 38 psig saturated steam. This valve features a fluid temperature range of 35 to 284 degrees Fahrenheit and can effectively handle pressures up to ANSI Class 250. Its robust construction ensures long service life and superior performance in a variety of HVAC applications.

• Designed for optimal flow control with a Cv of 46.2
• Compatible with a wide range of fluid temperatures and pressures
• Durable construction suitable for demanding environments

Product Highlights

Johnson Controls' VG7241ST+3003E valve and actuator setup is ideal for precise water and steam control in industrial and commercial settings. The included pneumatic actuator ensures reliable operation.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7241ST+3003E

Technical Specifications

• Material: Brass trim
• Actuator Type: Pneumatic, Model V-3000-8003
• Pressure Range: 9-13 psig
• Temperature Capacity: 35 to 284°F
• Pressure Rating: ANSI Class 250
