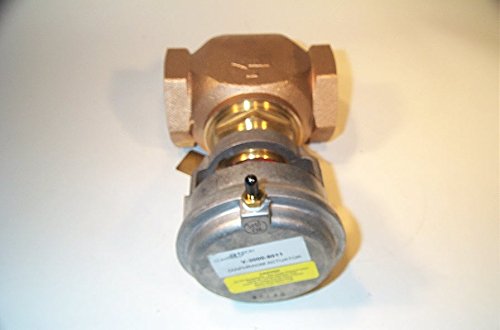

Johnson Controls VG7241PT+822E00 Series VG7000 Model VG7241PT Brass Trim Globe Valve with MP822E001A Pneumatic Actuator

Product Description

The Johnson Controls VG7241PT+822E00 is a Series VG7000 Model VG7241PT Brass Trim Globe Valve equipped with an MP822E001A Pneumatic Actuator. Designed to control hot or chilled water and up to 38 psig saturated steam, this valve ensures efficient fluid management.

• Industrial-grade, drawn-steel actuator fits VG7000 valves 1 through 2 inches.

Product Highlights

This globe valve is suitable for a broad range of applications, providing reliable control of liquid and steam flow. The unit accepts up to 25 psig air pressure and operates effectively across various temperatures, making it ideal for HVAC systems in industrial settings.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Brand: Johnson Controls
• Category: HVAC Controls
• Part Number: VG7241PT+822E00

Technical Specifications

• Maximum Supply Air Pressure: 25 psig (172 kPa)
• Fluid Temperature Range: 35 to 284 degrees Fahrenheit (2 to 140 degrees Celsius)
• Static Pressure Rating: ANSI Class 250
• Actuator Material: Drawn-Steel
• Valve Size Compatibility: 1 to 2 inches
• Steam Pressure: 38 psig
