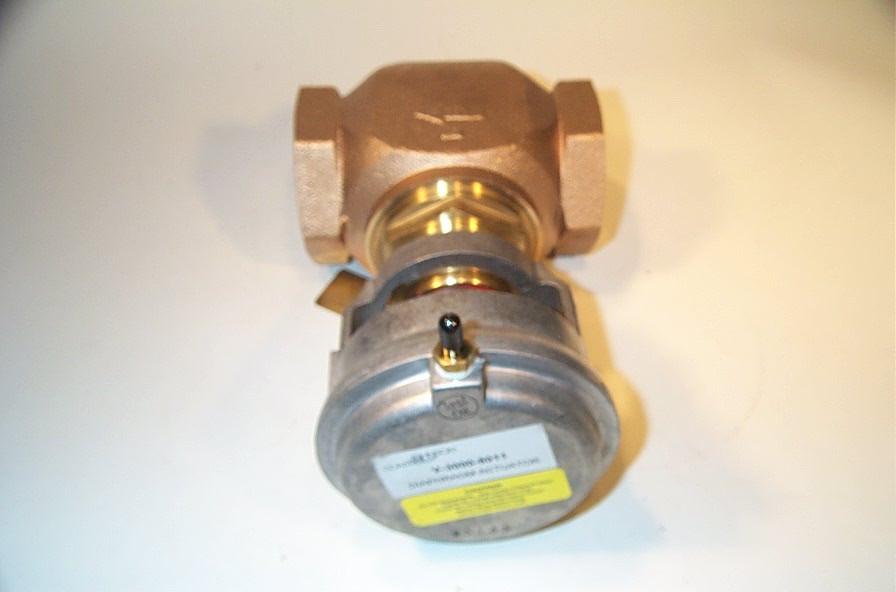

Johnson Controls VG7241PT+822C00 Brass Globe Valve Pneumatic Actuator

Product Description

Designed for reliable control of water or steam in various systems, the Johnson Controls VG7241PT+822C00 brass globe valve comes equipped with a pneumatic actuator for precise operation. Ideal for use in HVAC and hydronic applications, this valve ensures efficiency and durability.

• Operates efficiently with hot or chilled water and up to 38 psig saturated steam.
• Features ANSI Class 250 static pressure rating for robust performance.
• Compatible with optional V-9502-95 Positioner for enhanced control.

Product Highlights

This model is factory or field-ready, ensuring easy installation and maintenance. With its drawn-steel actuator, it offers compatibility with VG7000 series valves sized from 1 to 2 inches, facilitating broad utility across different setups.

Technical Specifications

• MPN: VG7241PT+822C00
• Brand: Johnson Controls
• Type: Brass Trim Globe Valve
• Actuator: Pneumatic, with 3-7 psig spring range
• Max Supply Air Pressure: 25 psig (172 kPa)
• Fluid Temperature Range: 35 to 284 degrees Fahrenheit (2 to 140 degrees Celsius)
• Dimensions: 10.01 inches height, 10.01 inches length, 10.01 inches width
• Weight: 1.0 lbs
