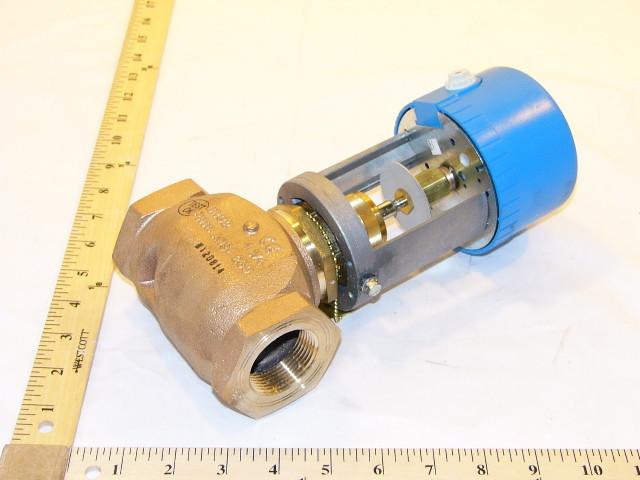

Johnson Controls VG7241PT+423BGA Brass Trim Globe Valve with Electric Actuator

Product Description

The Johnson Controls VG7241PT+423BGA is a high-performance brass trim globe valve combined with a VA-4233 series spring-return electric actuator designed for precise control of hot or chilled water and steam in HVAC systems.

• Spring-return functionality ensures reliable closure with stem up position.
• Delivers 61 lb force for effective shut-off and leak prevention.
• Compatible with VG7000 Series valves sizes 1/2 inch to 1 1/4 inches for versatile application.

Product Highlights

This valve system is suited for applications requiring robust performance with consistent and reliable operational quality.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG7241PT+423BGA

Technical Specifications

• Type: Globe Valve with Electric Actuator
• Voltage: 20 to 30 VAC, 50/60 Hz
• Power Consumption: 12 VA
• Static Pressure Rating: ANSI Class 250
• Weight: 9.6 lbs
• Dimensions: Height: 10.01 inches, Width: 10.01 inches, Length: 10.01 inches
