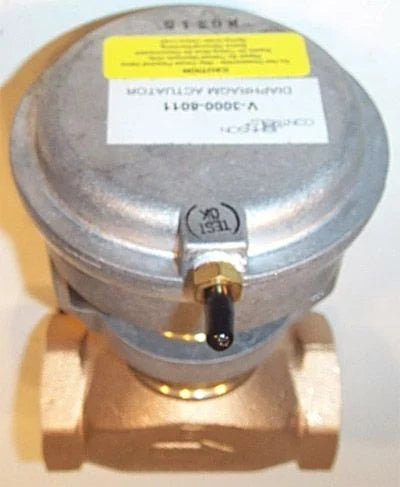

Johnson Controls VG7241PT+3008E Series VG7000 Model VG7241PT Brass Trim Globe Valve with Model V-3000-8012 Exposed Pneumatic Actuator, 9-13 psig Spring Range

Product Description

The Johnson Controls VG7241PT+3008E is a brass trim globe valve designed for controlling hot or chilled water and saturated steam. This valve is part of the VG7000 series and features a pneumatic actuator that operates in a spring range of nine to thirteen psig.

• Compatible with hot and cold water and steam applications.
• Rated for a maximum temperature of two hundred eighty-four degrees Fahrenheit.
• Includes a static pressure rating of ANSI Class 250.

Product Highlights

This valve offers robust performance in various HVAC applications, making it suitable for both factory and field assembly. It supports fluid temperatures ranging from thirty-five to two hundred eighty-four degrees Fahrenheit, ensuring flexibility in usage.

Product Information

Standard Information

• Manufacturer: Johnson Controls, Inc
• MPN: VG7241PT+3008E

Technical Specifications

• Valve Size: 1-1/4 inches
• Body Material: Bronze
• Piping Configuration: Straight
• Valve Connection: NPT
• Valve Application: Steam, Water
• Max Pressure: 15 psi WSP, 125 psi WOG
• Weight: 9.00 lbs
