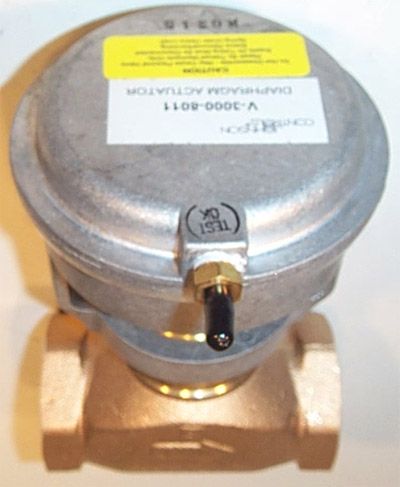

Johnson Controls VG7241PT+3008B Globe Valve Assembly 2 Way 1-1/4 in

Product Description

Johnson Controls VG7241PT+3008B is a globe valve assembly that offers reliable control in HVAC systems. This valve features a two-way design and measures one and one-quarter inches with an NPT connection.

• Constructed with a bronze body for durability.
• Pneumatic actuator with a spring return for efficient operation.
• Maximum flow capacity of eighteen point five Cv.

Product Highlights

The VG7241PT+3008B provides dependable temperature regulation in various applications, including heating and cooling systems in commercial environments.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7241PT+3008B

Technical Specifications

• Size: 1-1/4 inches
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Service: Hot water, chilled water, glycol solutions, and steam
• Body Material: Bronze
• Pressure Range: 3 to 6 psi
• Connection Type: NPT
