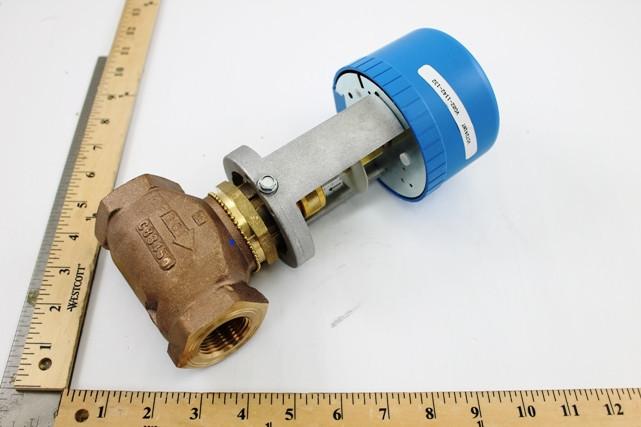

Johnson Controls VG7241NT+423BGA Brass Trim Globe Valve 1 NPT 2-Way 11.6 Cv N/O ON-OFF

Product Description

The Johnson Controls VG7241NT+423BGA brass trim globe valve expertly controls the flow of hot or chilled water, and steam. Designed for robust reliability evident in the 1 inch NPT, 2-way, 11.6 Cv configuration, this valve operates with a normally open (N/O) on-off setting.

• Features innovative spring return stem up for optimal performance
• Boasts a 61 pound force which ensures tight shutoff under varied conditions
• Manual opener adds a layer of control and ease of use

Product Highlights

This model benefits from compatibility with VG7000 Series valves sized from half an inch up to one and a quarter inches, providing versatility for various installation needs. Additionally, the valve body can withstand a static pressure rating of ANSI Class 250, ensuring durability in a range of operations.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7241NT+423Bga

Technical Specifications

• Voltage: 20 to 30 VAC, 50/60 Hz, 12 VA
• Weight: 8 pounds
• Dimensions (LxWxH): 10.01 inches x 10.01 inches x 10.01 inches
