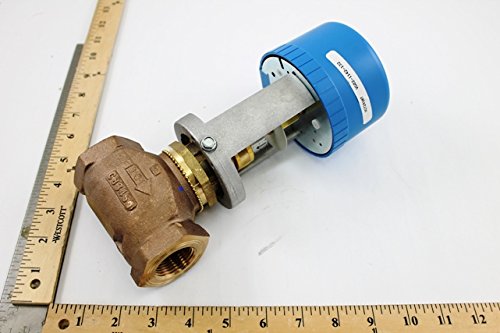

Johnson Controls VG7241NT+423AGA Brass Trim Globe Valve with VA-4233-AGA-2 Electric Actuator

Product Description

The Johnson Controls VG7241NT+423AGA is a brass trim globe valve paired with the VA-4233 Series spring-return electric actuator. This model is designed to control hot or chilled water and steam applications. It is built for durability and functionality in various control systems.

• Spring return stem up design
• Force rating of sixty-one pounds for effective shutoff
• Includes a manual opener for easy operation

Product Highlights

The VG7241NT+423AGA offers reliable control for HVAC systems and other water management applications. It features an optional auxiliary switch for added functionality and can be assembled on-site or in the factory.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Model Number: VG7241NT+423AGA

Technical Specifications

• Voltage: 20 to 30 VAC
• Frequency: 50/60 Hz
• Power Consumption: 12 VA
• Static Pressure Rating: ANSI Class 250
• Size Range: Fits VG7000 Series valves from half an inch to one and a quarter inches
• Flow Coefficient (Cv): 11.6
• Configuration: 2-way
• Actuator Type: Normally Open (N/O) Spring Return (S/R)
