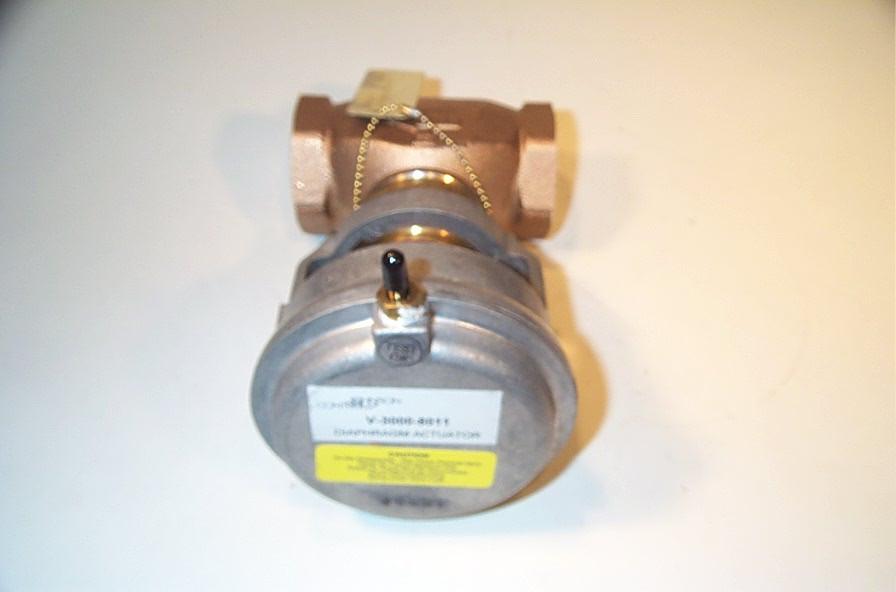

Johnson Controls VG7241NT+3003D Series VG7000 Model Brass Trim Globe Valve with V-3000-8003 Pneumatic Actuator

Product Description

The Johnson Controls VG7241NT+3003D brass trim globe valve, equipped with a V-3000-8003 enclosed pneumatic actuator, is expertly designed to control hot or chilled water and steam in HVAC systems. Ideal for applications requiring precise flow control.

• Compatible with water temperatures ranging from 35 to 284 degrees Fahrenheit
• ANSI Class 250 static pressure rating for durable performance in demanding environments
• Optional positioner available for enhanced control

Product Highlights

Rugged, die-cast actuator enclosure ensures longevity and reliability in various settings. This valve operates efficiently within a 4-8 psig spring range, making it suitable for a wide range of operational pressures.

Product Information

Standard Information

• Country of Origin: United States
• Package Weight: 0.6 pounds
• Item Dimensions: 6 inches L x 5 inches W x 6 inches H

Technical Specifications

• Fluid Temperature Range: 35 to 284 degrees Fahrenheit
• Valve Type: Brass Trim Globe Valve
• Actuator Type: Pneumatic, enclosed
• Steam Pressure: Up to 38 psig
• Control Type: Optional positioner (V-9502-90)
