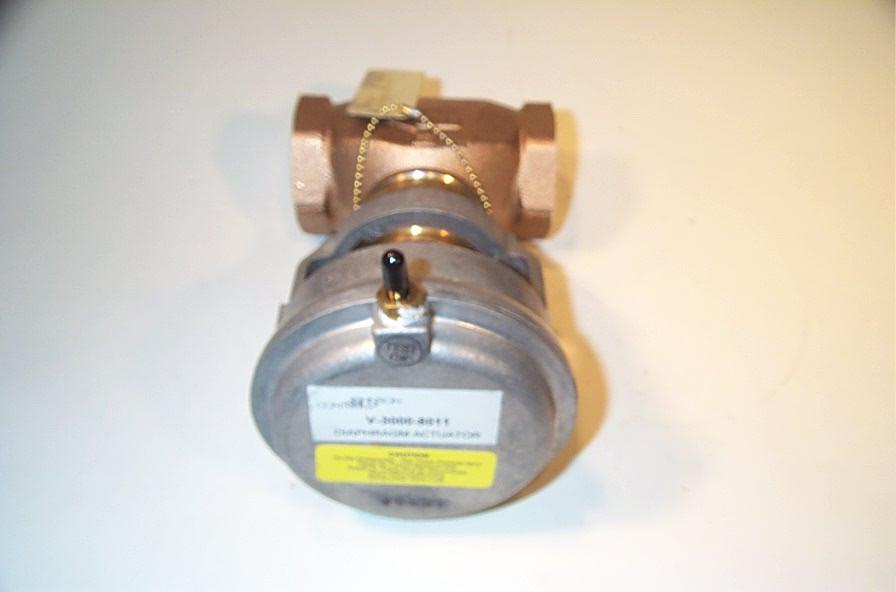

Johnson Controls VG7241NT+3003B Valve 1 inch N/O 11.6Cv Replacement VG7241NT+3003B

Product Description

Explore the Johnson Controls model VG7241NT+3003B, a brass trim globe valve equipped with the V-3000-8003 enclosed pneumatic actuator. This valve system is engineered for precise control of hot or chilled water and can handle up to 38 psig of saturated steam. The unit is suited for a temperature range from 35 degrees to 284 degrees Fahrenheit. Its valve body is rated for ANSI Class 250 static pressure.

• Designed for seamless integration with VG7000 Series valves ranging from half an inch to two inches.
• Made in the United States, ensuring high-quality and reliability.
• Compact packaging dimensions facilitate easy installation and maintenance.

Product Highlights

The valve is ideal for environments requiring durable and long-lasting materials, thanks to its rugged die-cast actuator enclosure.

Product Information

Standard Information

• Model Type: Brass Trim Globe Valve
• Actuator Type: Enclosed Pneumatic

Technical Specifications

• Control Range: 3-6 psig Spring Range
• Fluid Temperature Capacity: 35 to 284 degrees Fahrenheit
• Steam Capacity: 38 psig saturated steam
• Body Static Pressure Rating: ANSI Class 250
