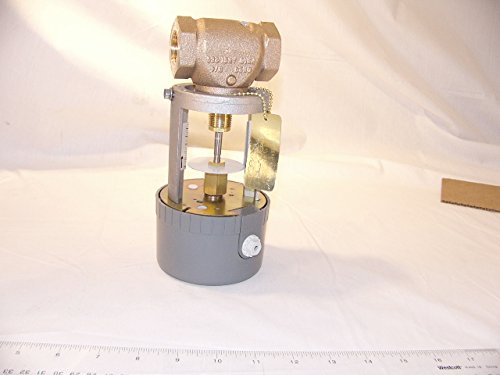

Johnson Controls VG7241LT+423GGA Brass Trim Globe Valve Spring Return Electric Actuator

Product Description

The Johnson Controls VG7241LT+423GGA brass trim globe valve enhanced with a VA-4233 series spring-return electric actuator, manages the flow of hot or chilled water and steam. This valve setup is pivotal in HVAC systems where reliable control of fluid handling is essential. Referencing the VG7000 Series Bronze Control Valves Product Bulletin, this product offers significant application details for optimal operation.

• Spring return stem ensures reliable operability.
• Powerful 61 lb. force guarantees tight shutoff.
• Includes a manual opener for manual flow control.

Product Highlights

Equipped for both factory or field assembly, this valve system conforms to ANSI Class 250 for static pressure tolerance and supports optional auxiliary switches. Operating at 20 to 30 VAC and a frequency of 50/60 Hz, it draws a power of 12 VA.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7241LT+423GGA

Technical Specifications

• Product Type: Valve
• Control Type: Electric Actuator with Spring Return
• Compatibility: VG7000 Series valves from 0.5 through 1.25 inches
• Electrical Specifications: 20 to 30 VAC, 50/60 Hz, 12 VA
• Pressure Rating: ANSI Class 250
