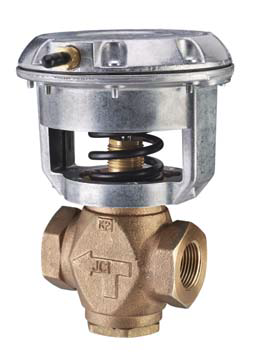

Johnson Controls VG7241LT+3008D Bronze Pneumatic Valve 3/4 inch NPT 4-8 psi

Product Description

Johnson Controls VG7241LT+3008D is a high-quality bronze pneumatic valve, designed for reliable performance in various HVAC and plumbing applications. This valve features a robust 3/4 inch NPT connection and operates with a 4-8 psi spring range, suitable for managing flow rates up to 7.3 CV.

• Engineered for both hot or chilled water and up to 38 psig saturated steam.
• ANSI Class 250 for static pressure rating.
• Compliant with NSF/ANSI 61 standards, ensuring safe use in drinking water applications.

Product Highlights

The Johnson Controls VG7241LT+3008D valve is equipped with a V-3000-8012 exposed pneumatic actuator which provides enhanced control and durability.

Product Information

Standard Information

• Connection Type: NPT
• Body Material: Bronze

Technical Specifications

• Valve Size: 3/4 inch
• Maximum Pressure: 125 psi WOG
• Temperature Range: 35 to 284 degrees Fahrenheit
