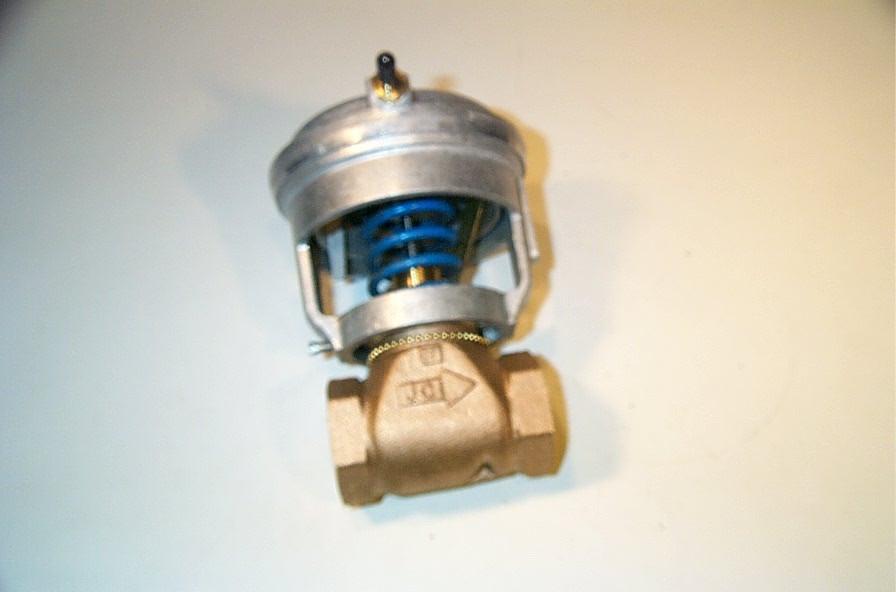

Johnson Controls VG7241LT+3003E Brass Trim Globe Valve Pneumatic Actuator

Product Description

The Johnson Controls VG7241LT+3003E brass trim globe valve, paired with a V-3000 pneumatic actuator, is engineered for the control of hot or chilled water and up to 38 psig saturated steam. Suitable for systems with fluid temperatures ranging from 35 to 284 degrees Fahrenheit. The valve's body boasts an ANSI Class 250 static pressure rating, ensuring durability and reliability in a variety of settings. Both factory and field assembly options are available, providing flexibility for different installation needs.

• Optimized for both hot and chilled water systems.
• Handles up to 38 psig saturated steam.
• ANSI Class 250 static pressure rating.

Product Highlights

This globe valve features a rugged die-cast enclosure that is compatible with the VG7000 Series, accommodating valve sizes from 1/2 inch up to 2 inches. Its design ensures robust performance and longevity in demanding environments.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7241LT+3003E

Technical Specifications

• Type: Brass Trim Globe Valve
• Actuator: V-3000-8003 Enclosed Pneumatic
• Function: Hot/chilled water, 38 psig steam
• Pressure Rating: ANSI Class 250
• Factory Options: Available
• Field Assembly: Supported
