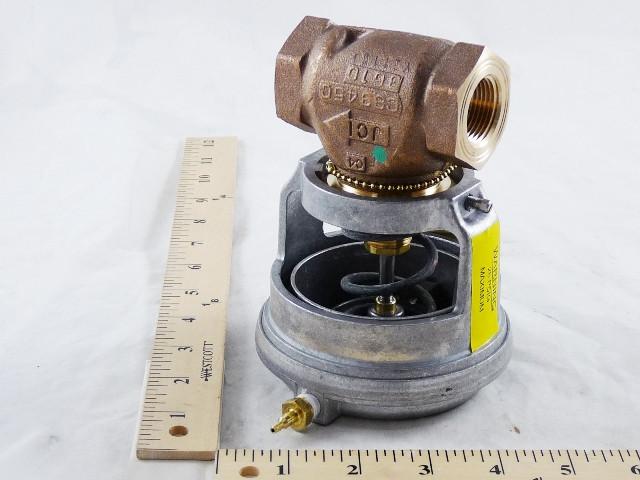

Johnson Controls VG7241LT+3003B Brass Trim Globe Valve with Pneumatic Actuator 3/4 inch N/O 2W 3-6 psig 7.3CV

Product Description

The Johnson Controls VG7241LT+3003B is a brass trim globe valve equipped with a robust pneumatic actuator, designed for precise control of hot or chilled water and up to 38 psig saturated steam. This valve's body supports an ANSI Class 250 static pressure rating, making it suitable for demanding HVAC applications.

• Optimal for temperatures ranging from 35 to 284 degrees Fahrenheit
• Compatible with VG7000 Series valves from 1/2 to 2 inches
• Suitable for both factory and field assembly

Product Highlights

Equipped with a V-3000-8003 enclosed pneumatic actuator, this valve ensures reliable operation with a spring range of 3-6 psig. The die-cast enclosure of the actuator enhances the durability and longevity of the valve, making it an ideal choice for both commercial and industrial settings.

Technical Specifications

• Valve Type: Brass Trim Globe Valve
• Actuator Type: Pneumatic, enclosed
• Operation: 3-6 psig, N/O
• Flow Coefficient (Cv): 7.3
