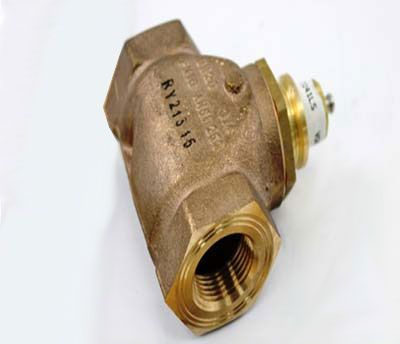

Johnson Controls VG7241LS Brass Trim Globe Valve 3/4 Inch NPT

Product Description

The Johnson Controls VG7241LS is a high-performance brass trim globe valve designed for control of hot or chilled water and low pressure steam in HVAC systems. This valve features a durable brass construction, ensuring long-term reliability and resistance to corrosion. The 3/4 inch NPT straight connections facilitate easy installation in a wide range of piping configurations.

• Designed for both chilled and hot water systems
• Robust brass body for enhanced durability and long service life
• Efficient flow handling with a 7.3 cv capacity

Product Highlights

Optimal for applications including HVAC systems and low pressure steam environments, the VG7241LS by Johnson Controls operates efficiently within a temperature range of 35 to 248 degrees Fahrenheit. It is commonly used in environments like schools, commercial buildings, and industrial facilities for reliable temperature control.

Technical Specifications

• Brand: Johnson Controls
• MPN: VG7241LS
• Connection Type: NPT Straight
• Body Material: Brass
• Max Pressure: 15 psi
• Temperature Range: 35 to 248 degrees Fahrenheit
• Flow Capacity: 7.3 cv
