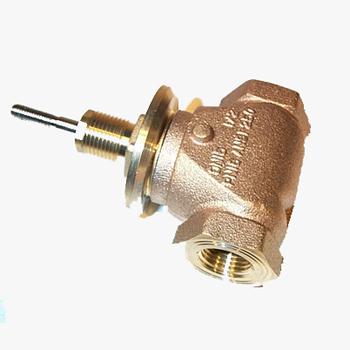

Johnson Controls VG7241GT+7152G Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7241GT+7152G is a globe valve assembly designed for efficient flow control in HVAC systems. This two-way valve has a connection size of one-half inch and is built for durability and reliability.

• NPT connection type
• Flow coefficient of 4.6 Cv
• Stainless steel stem with a bronze body

Product Highlights

This valve is essential for regulating hot and chilled water systems in HVAC applications. It includes features like a magnetic clutch for protecting the gearing and ensuring a tight closeoff.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Part Number: VG7241GT+7152G

Technical Specifications

• Housing: NEMA 2, IP42
• Service: Hot water, chilled water, glycol solutions, and steam for HVAC systems
• Power Consumption: 24 VAC (20 to 30 VAC), 50/60 Hz
• Close-off Pressure: 216 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: 0 F to 140 F (-18 C to 60 C)
• Electrical Connection: Screw terminals for 16 AWG maximum
