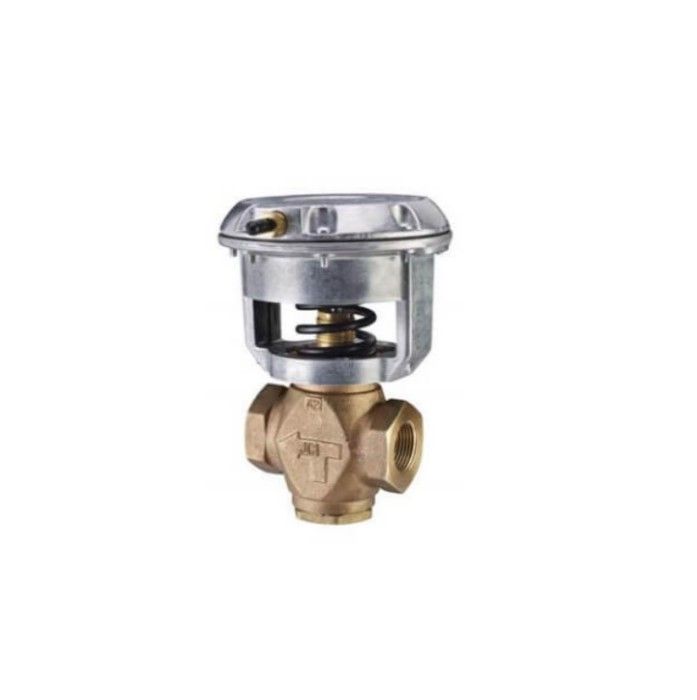

Johnson Controls VG7241GT 3003E Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls Globe Valve Assembly, model VG7241GT+3003E, is a reliable 2-way valve designed for HVAC systems. This valve features a bronze body, stainless steel stem, and brass seat. It incorporates a pneumatic actuator with a spring return for efficient operation.

• Flow coefficient of 4.6 Cv
• Compatible with polytubing of one-fourth inch or five thirty-seconds inch outer diameter
• Operating pressure range from nine to thirteen psig

Product Highlights

Ideal for both hot water and glycol solutions, this valve provides precision control in various HVAC applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7241GT+3003E

Technical Specifications

• Housing: Die Cast Aluminum Diaphragm, Synthetic Rubber
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and Steam for HVAC Systems
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Operating Conditions (Actuator): -20 F to 150 F (-29 C to 66 C)
