Johnson Controls VG7241GS+8020G PDTC Valve Assembly 24V (1/2 inch)

Product Description

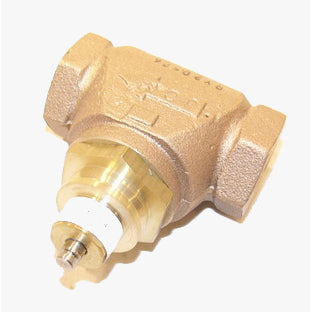

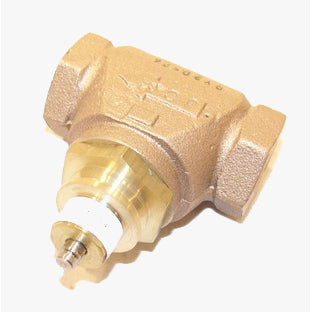

The Johnson Controls VG7241GS+8020G is a 1/2 inch PDTC globe valve assembly with an integrated VA-8020-1 electric actuator operating at 24V. The cast bronze 2-way valve has a Cv of 4.6, normally open (push-down-to-close) action, and NPT end connections. The actuator provides two-position control and supports on/off and floating operation for HVAC and fluid control applications.

• 1/2 inch cast bronze 2-way globe valve, Cv 4.6, normally open (push-down-to-close) with 1/2 inch NPT connections
• Includes VA-8020-1 electric actuator; actuator voltage 24V, actuator functions: on/off and floating; 2-position operation
• Brass trim with slotted stem and small bonnet; part of the VG7000 series, suited for HVAC control valve applications

Product Highlights

1/2 inch cast bronze 2-way globe valve with Cv 4.6 and integrated 24V VA-8020-1 actuator

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG7241GS+8020G
• Country of Origin: US

Technical Specifications

• Brand: Johnson Controls
• MPN: VG7241GS+8020G
• Valve type: 2-way globe control valve
• Series: VG7000
• Size: 1/2 inch
• Connection: 1/2 inch NPT
• Body material: Cast bronze
• Trim material: Brass
• Cv (flow coefficient): 4.6
• Action: Normally open (push-down-to-close)
• Positions: 2-position
• Actuator model: VA-8020-1
• Actuator function: On/Off, floating
• Actuator voltage: 24V
• Stem: Slotted stem
• Bonnet: Small bonnet
• Country of Origin: US
