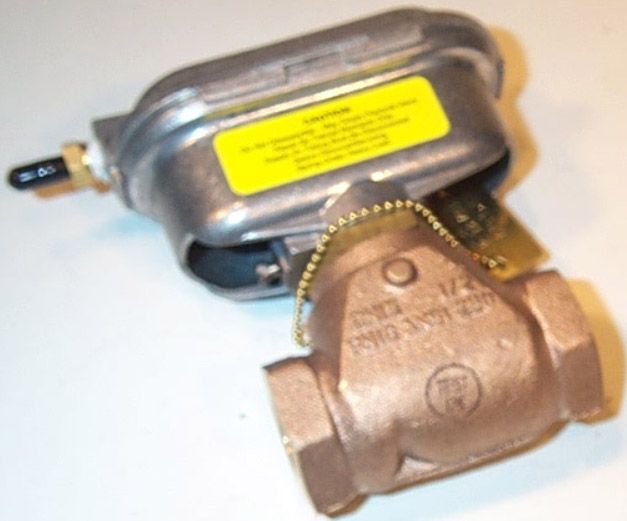

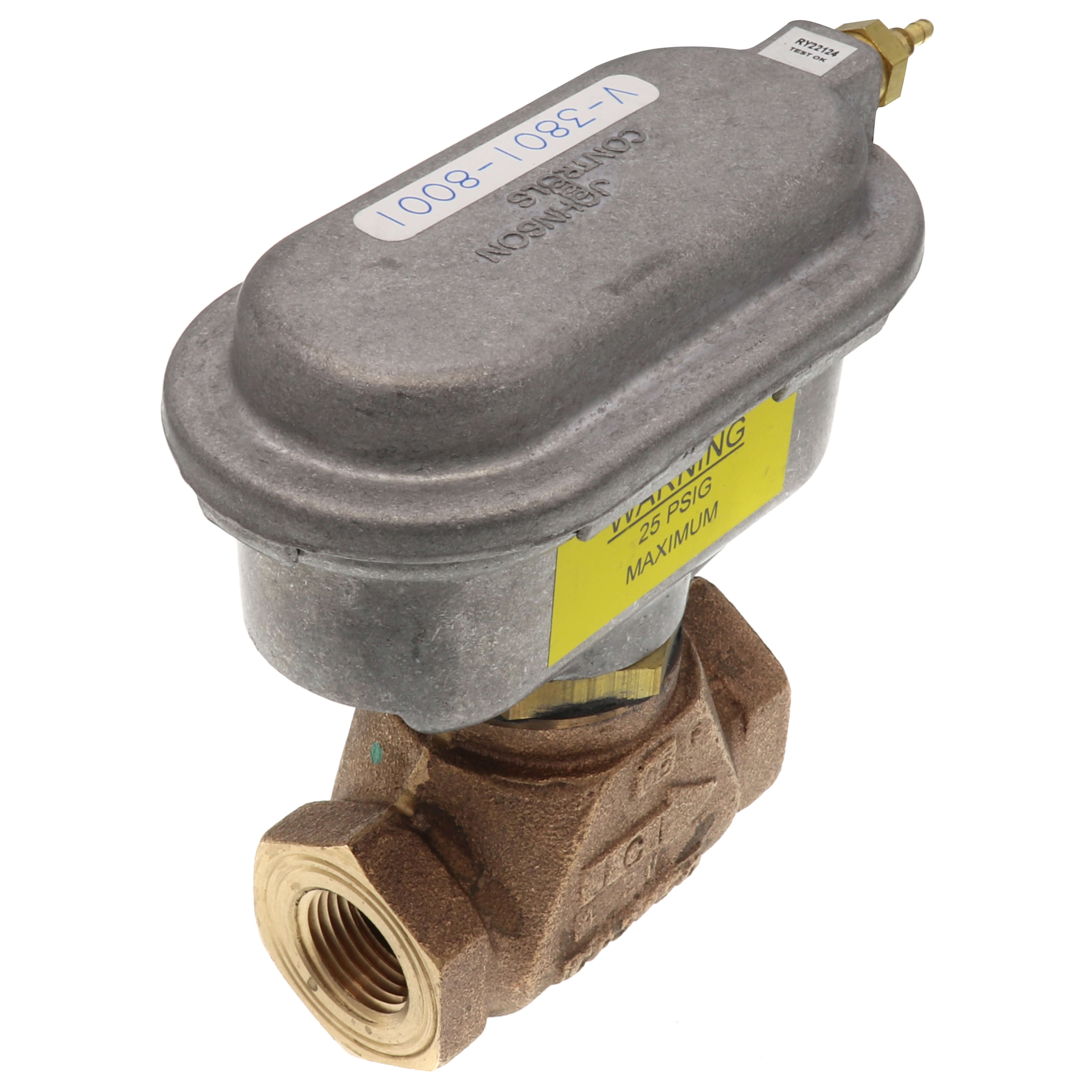

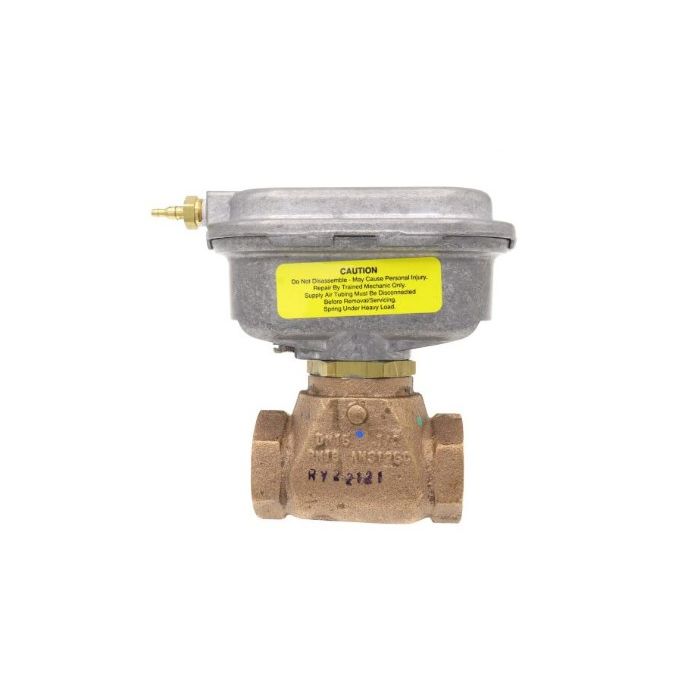

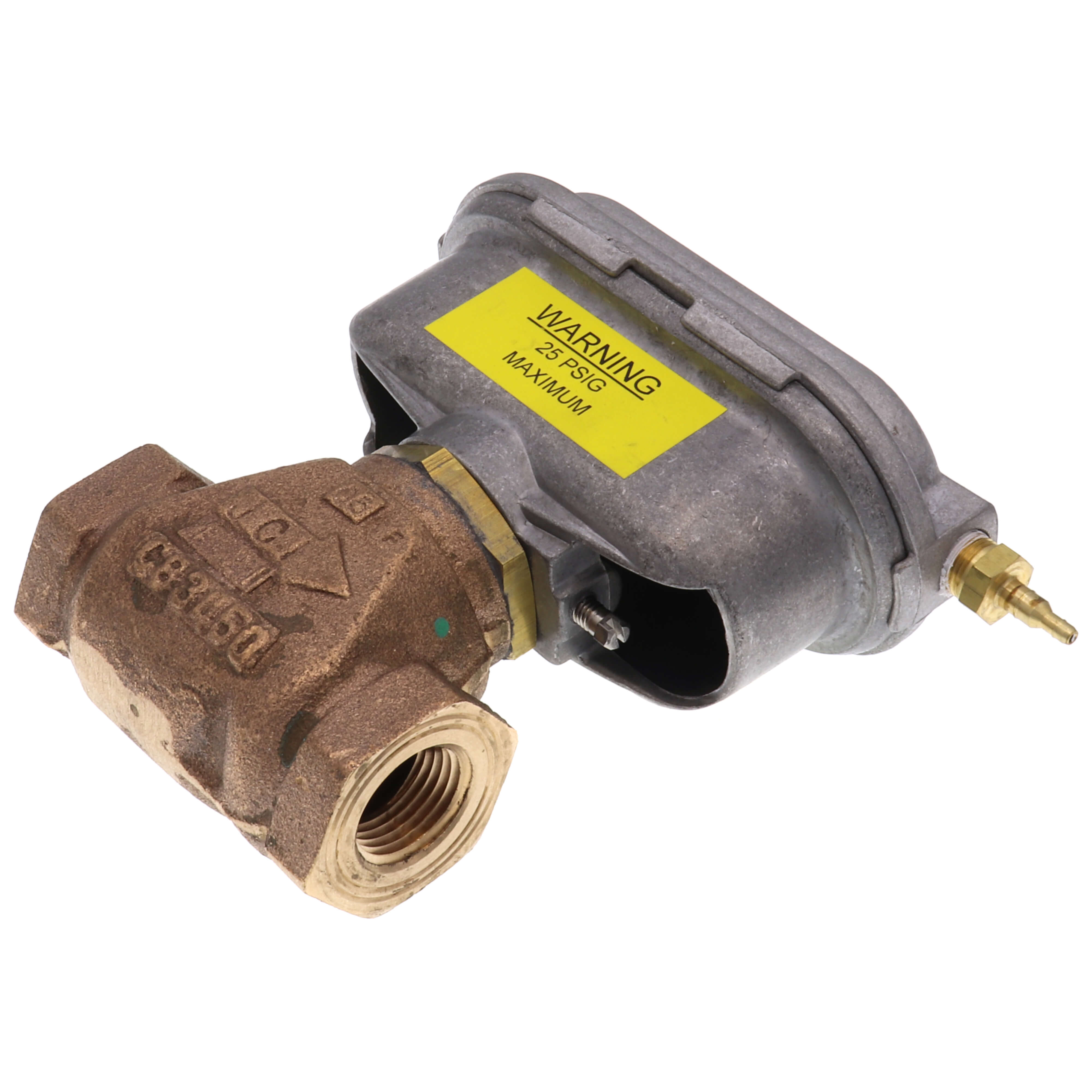

Johnson Controls VG7241GS+3801B 1/2 Inch NPT Bronze Pneumatic Valve

Product Description

The Johnson Controls VG7241GS+3801B is a 1/2 inch NPT bronze pneumatic valve designed for reliability in industrial and commercial settings. This valve operates with a normally-open, 2-way configuration and comes equipped with a compact pneumatic actuator.

• Ideal for regulating hot and chilled water or up to 15 psi of saturated steam
• Features a stainless steel valve stem and a robust ANSI Class 250 bronze body
• Maximum air supply pressure of 25 psi and can handle fluid temperatures from 35 to 248 degrees Fahrenheit

Key Product Specifications

Equipped with a spring range of 3-6 psi and a flow capacity of 4.6 Cv, this valve ensures precise control and efficient performance under varying conditions.

Technical Specifications

• Brand: Johnson Controls
• MPN: VG7241GS+3801B
• Valve Size: 1/2 inch NPT
• Connection Type: NPT
• Body Material: Bronze
• Maximum Pressure: 15 psi WSP, 125 psi WOG
• Valve Application: Steam, Water
• Fluid Temperature Range: 35 to 248 degrees Fahrenheit
