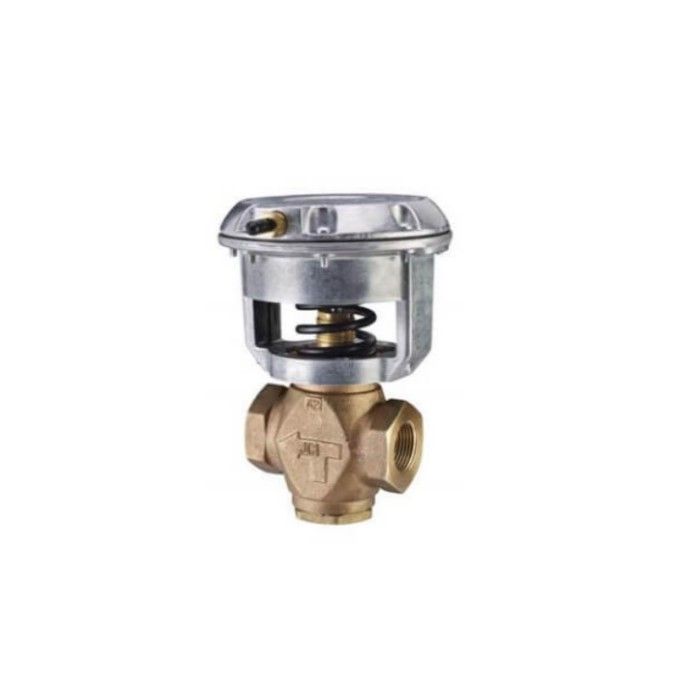

Johnson Controls VG7241ET3008BP Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7241ET3008BP is a globe valve assembly designed for HVAC systems. This valve features a two-way design with a half-inch connection size. It is equipped with a pneumatic actuator for efficient control.

• NPT connection, 1.8 Cv rating
• Bronze body with stainless steel stem
• Spring return actuator with barbed fitting for polytubing

Product Highlights

This valve is suitable for various services, including hot water, chilled water, glycol solutions, and steam. It has a durable design for long-lasting performance in HVAC applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7241ET+3008BP

Technical Specifications

• Housing: Die Cast Aluminum Diaphragm, Synthetic Rubber
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and Steam
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Operating Conditions (Actuator): -20 F to 150 F (-29 C to 66 C)
