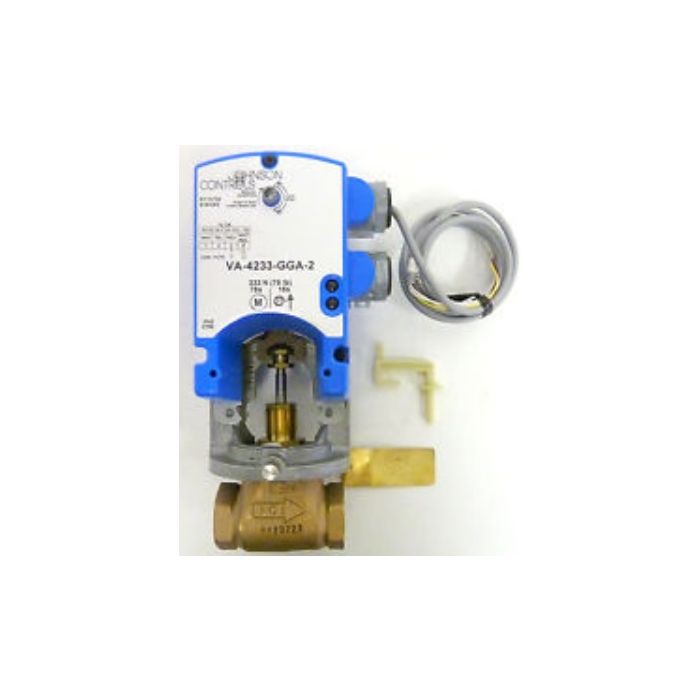

Johnson Controls VG7241ET+423GGC Globe Valve Assembly, 2 Way 1/2 in.

Product Description

The Johnson Controls VG7241ET+423GGC is a globe valve assembly designed for HVAC systems. This two-way valve operates with a half-inch NPT connection and features a bronze body that offers durability. The stainless steel stem and brass seat enhance its longevity and reliability in various applications.

• Application: Suitable for hot water, chilled water, glycol solutions, and steam.
• Power consumption: 12 VA.
• Flow characteristic: Equal percentage for efficient control.

Product Highlights

This valve actuator features a spring return design, ensuring quick response times and efficiency in operations.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG7241ET+423GGC

Technical Specifications

• Operating Conditions: -4 F to 122 F (-20 C to 50 C)
• Close-off Pressure: 345 psig
• Electrical Connection: 48 in. cable with 20 AWG wire leads
• Housing: NEMA 2, IP42
• Service: Hot water, chilled water, 50/50 glycol solutions, and steam for HVAC systems
• Flow Characteristic: Equal percentage
• Power Consumption: 12 VA
• Spring Return: Yes
