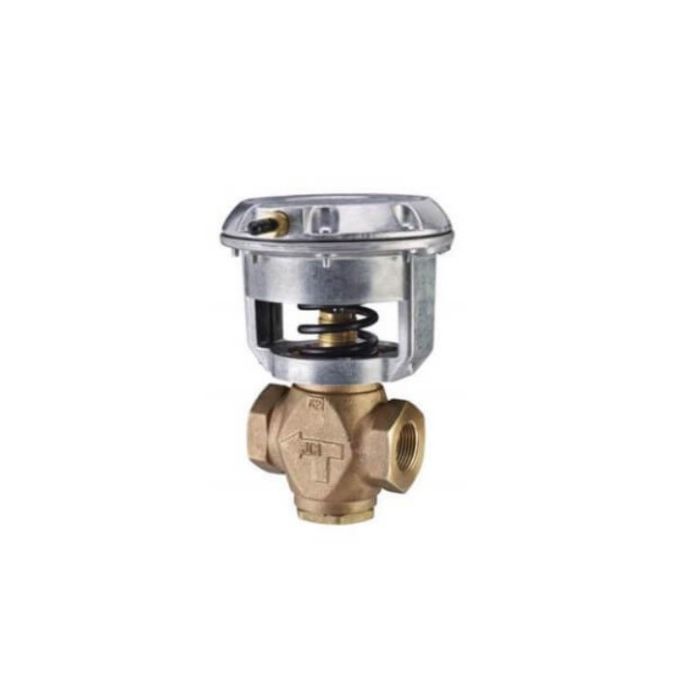

Johnson Controls VG7241ES+3801E Globe Valve Assembly, 2 Way 1/2 in.

Product Description

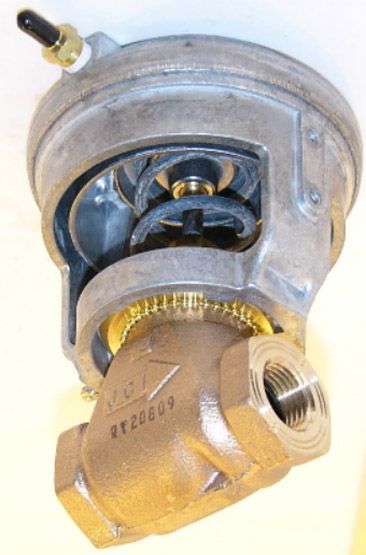

The Johnson Controls VG7241ES+3801E is a globe valve assembly designed for HVAC systems. This valve features a two-way function and is suitable for applications involving hot water, chilled water, glycol solutions, and steam. It has a capacity of 1.8 Cv and operates within a pressure range of 9 to 13 psi.

• Pneumatic actuator with spring return for reliable operation
• Compact design for installation in tight spaces
• Compatible with 1/2 inch NPT connections

Product Highlights

This valve assembly is ideal for use in baseboard radiators and convectors. The die-cast aluminum diaphragm ensures durability, while the synthetic rubber material enhances performance in various temperature conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7241ES+3801E

Technical Specifications

• Valve Size: 1/2 inch
• Body Material: Bronze
• Maximum Pressure: 15 psi WSP, 125 psi WOG
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Piping Configuration: Straight
• Valve Application: Steam, Water
