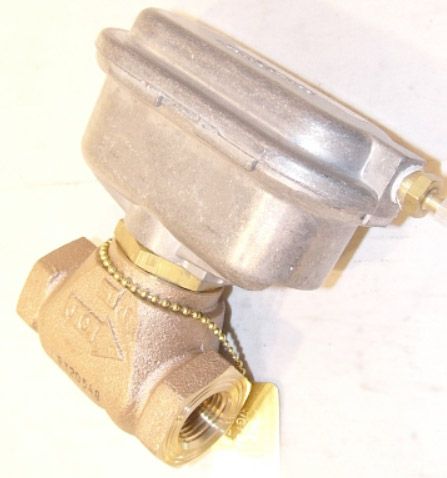

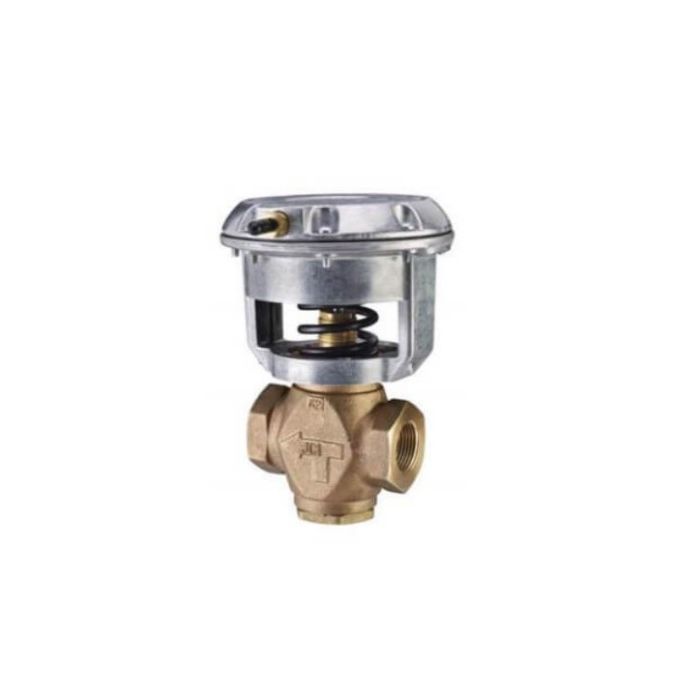

Johnson Controls VG7241CS+3801B Globe Valve Assembly 2 Way 1/2 in

Product Description

The Johnson Controls VG7241CS+3801B globe valve assembly is designed for HVAC systems to control the flow of water, steam, and glycol solutions with reliability. This valve features a 1/2-inch NPT connection and normally open configuration, providing seamless flow when not actuated.

• Maximum flow coefficient of 0.73 Cv
• Constructed from bronze for corrosion resistance
• Operates within a pressure range of 3 to 6 psi

Product Highlights

This valve is ideal for applications in hot water and chilled water systems where effective flow control is necessary. It is designed to operate in temperatures between thirty-five to two hundred forty-eight degrees Fahrenheit.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7241CS+3801B

Technical Specifications

• Valve Size: 1/2 inches
• Body Material: Bronze
• Flow Characteristic: Equal Percentage
• Service: Hot water, chilled water, glycol solutions, steam
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Weight: 2.31 pounds
• Dimensions: 5.1 inches (length) x 7.3 inches (width) x 4.85 inches (height)
