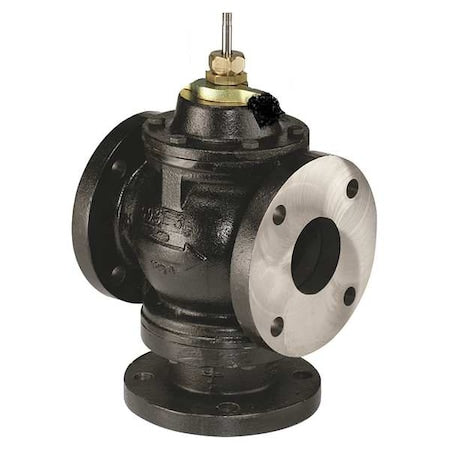

Johnson Controls VG2831VN VG2000 Series Three-Way Mixing Flanged Globe Valve Body with MP86 Series Pneumatic Spring-Return Actuator, 4 inch Size, 157Cv VG2831VN
Johnson Controls VG2831VN VG2000 Series Three-Way Mixing Flanged Globe Valve Body with MP86 Series Pneumatic Spring-Return Actuator, 4 inch Size, 157Cv VG2831VN

Johnson Controls VG2831VN VG2000 Series Three-Way Mixing Flanged Globe Valve Body with MP86 Series Pneumatic Spring-Return Actuator, 4 inch Size, 157Cv VG2831VN

Brand: JOHNSON CONTROLS
SKU: VG2831VN
Availability: Out Of Stock
$1,879.55
$1,879.55
LTL Delivery

This product weighs 135 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Johnson Controls model VG2831VN is a 4 inch three-way mixing globe valve from the VG2000 series, designed to control water and steam flow in HVAC systems. It can operate under a maximum working pressure of 157 psi and is adaptable with both electric and pneumatic actuators.

  • Durable cast iron construction ensures longevity in harsh environments.
  • Capable of handling medium temperatures ranging from -20 degrees Fahrenheit to 250 degrees Fahrenheit.
  • Flanged connection offers robust installation and maintenance ease.

Product Highlights

This valve is essential for hydronic heating and cooling systems, providing reliable performance and flexibility in application due to its various configurations including Normally Open, Normally Closed, and mixing types.

Product Information

Standard Information

  • Brand: Johnson Controls
  • Item Number: VG2831VN

Technical Specifications

  • Body Material: Cast iron
  • Trim Material: Brass
  • Connection Size: 4 inches
  • Connection Type: Flanged
  • Max. Water Temp.: 281 degrees F
  • Coefficient of Volume: 157
  • Safe Working Steam Pressure: 35 psi
  • Safe Working Water Pressure: 175 psi
