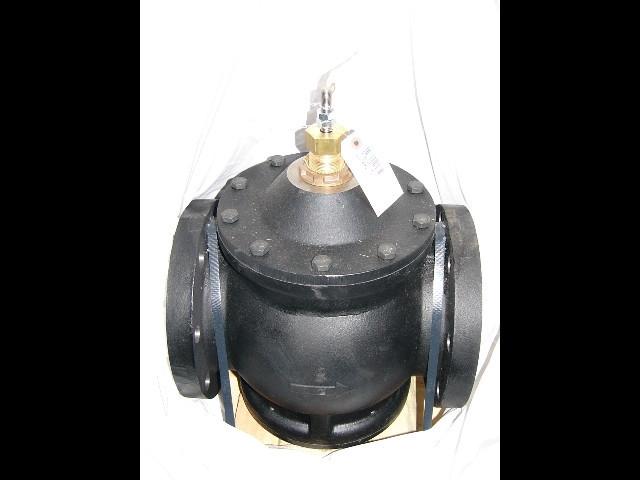

Johnson Controls VG2431YN 6 Inch NC 2-Way Iron Globe Valve

Product Description

The Johnson Controls model VG2431YN is a robust 6-inch normally closed 2-way cast iron globe valve designed to effectively control the flow of steam or water in HVAC systems.

• Constructed from durable cast iron with brass trim, ensuring long-term reliability and resistance to high temperatures.
• Features a flanged connection size of six inches, perfect for large-scale industrial installations.
• Designed for use with M9000 Series actuators and pneumatic actuators, providing versatile and efficient performance.

Product Highlights

This valve is crafted to handle a maximum water temperature of 281 degrees Fahrenheit and can withstand safe working steam pressures up to 35 psi and water pressures up to 175 psi. Its coefficient of volume is 350, which guarantees accurate and efficient fluid regulation.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG2431YN

Technical Specifications

• Height: 19 3/16 inches
• Width: 14 1/2 inches
• Depth: 11 inches
• Body Material: Cast iron
• Configuration: Normally Closed
• Connection Size: 6 inches
• Connection Type: Flanged
• Max. Water Temp: 281 degrees Fahrenheit
• Coefficient of Volume: 350
• Safe Working Steam Pressure: 35 psi
• Safe Working Water Pressure: 175 psi
• Country of Origin (subject to change): Mexico
