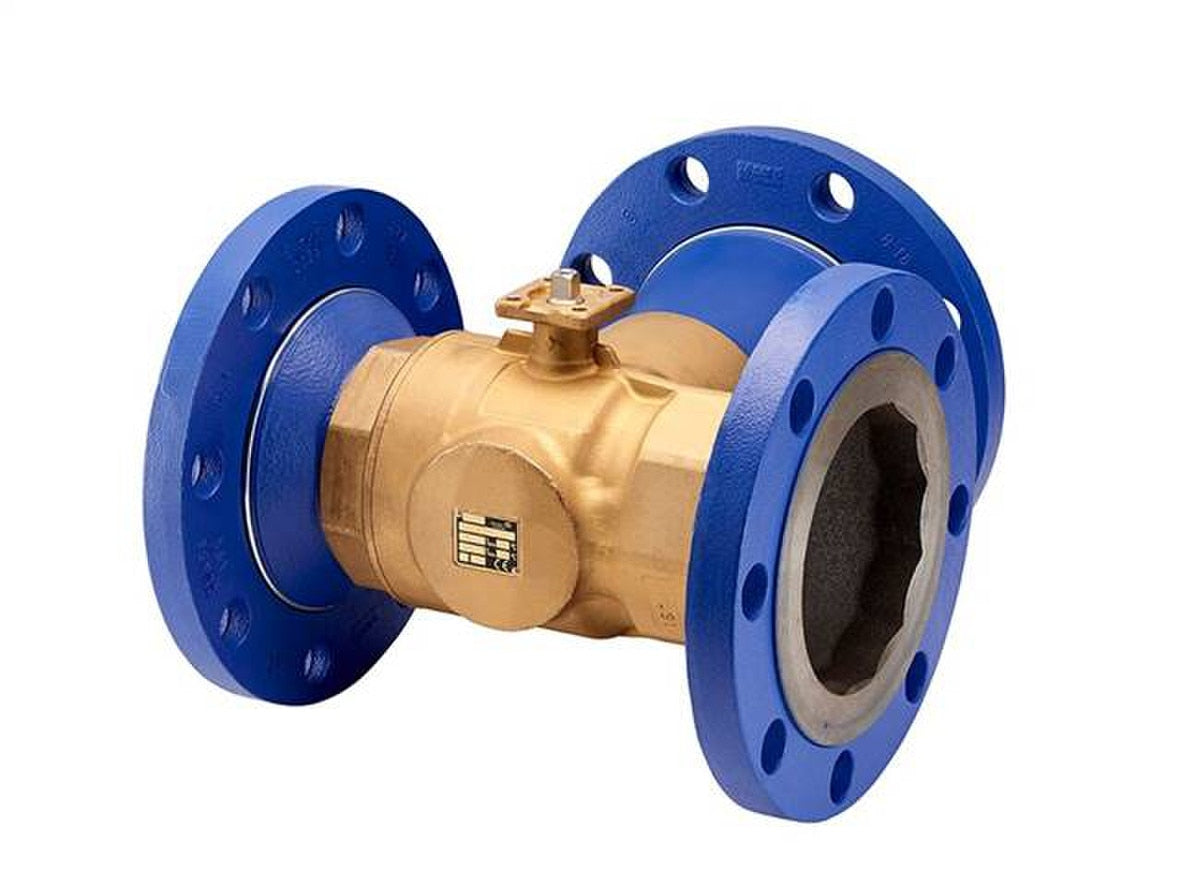

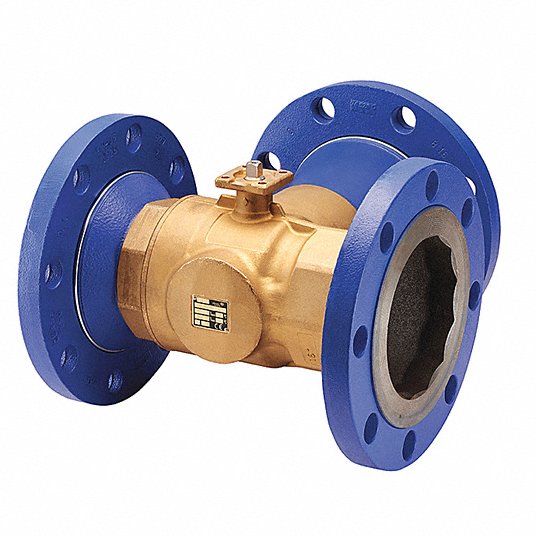

Johnson Controls VG18A5MW Control Ball Valve, 3-Way 4 in

Product Description

The JOHNSON CONTROLS VG18A5MW is an HVAC Control Ball Valve designed for regulating flow in systems. This 3-Way valve features a 4-inch flanged connection and a Cv Flow Rate of 185. Constructed from durable forged brass with stainless steel ball and stem, it is suitable for water and steam applications with a maximum fluid temperature of 284°F and a safe working water pressure of 250 psi. It offers a closeoff pressure of 50 psi and is compatible with Mfr. No. M9000.

• HVAC Control Ball Valve with a 3-Way design for versatile flow management.
• Features a 4-inch flanged connection and a Cv Flow Rate of 185.
• Constructed from forged brass with stainless steel ball and stem, suitable for fluids up to 284°F.

Product Highlights

This 3-Way HVAC control ball valve offers robust forged brass construction and precise flow regulation for various system applications.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG18A5MW
• Country of Origin: Mexico

Technical Specifications

• Valve Type: 3-Way Ball Valve
• Connection Size: 4 in
• Connection Type: Flanged
• Body Material: Forged Brass
• Ball Material: Stainless Steel
• Stem Material: Stainless Steel
• Trim Material: Stainless Steel
• Cv Flow Rate: 185
• Bypass Cv Flow Rate: 190 gpm
• Closeoff Pressure: 50 psi
• Safe Working Steam Pressure: 25 psi
• Safe Working Water Pressure: 250 psi
• Pressure Rating: 100 psig
• Maximum Fluid Temperature: 284 °F
• Minimum Fluid Temperature: 0 °F
• Fluid Service: Steam, Water, Water-Glycol Solution (up to 50%)
• Actuator Included: No
• Compatible With: Mfr. No. M9000
• Compatible With Series: VG1000
• Face-to-Face Design: Narrow
• ASME Class: 150
• ANSI Leakage Class: IV
• Gasket Material: EPDM
• Seat Material: Graphite-Reinforced PTFE
• Characterizing Disk Included: Yes
• Valve Action: Stem Down to Close
• Leakage Rate: 1 %
• Flow Characteristic: Equal Percentage, Linear
• Port Connections: Bypass, Control
• Rangeability: 500:1
• Application: Control of Hot/Chilled Water
