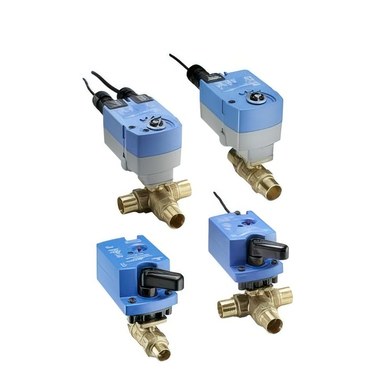

Johnson Controls VG1895AF Ball Valve 3 Way 1/2 In 2.9 Cv

Product Description

The Johnson Controls VG1895AF is a 3-way ball valve designed for HVAC systems. It features a half-inch size with a flow coefficient of 2.9 Cv. The valve is made from forged brass and includes a stainless steel ball. This model ensures a maintenance-free operation and withstands over 200,000 full stroke cycles.

• Compact size for easy installation
• High rangeability for precise control in various conditions
• Compatible with RIDGID pressing tools for reduced installation costs

Product Highlights

The VG1895AF ball valve is designed for both hot and chilled water applications. It provides efficient flow control and operates effectively under varying load conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1895AF

Technical Specifications

• Size: 1/2 inch
• Flow Characteristic: Equal percentage on the in-line port A and linear on the angle port B
• Service: Suitable for hot water, chilled water, and glycol solutions
• Close-Off Pressure: 200 psig
• Operating Conditions: 22°F to 212°F (-30°C to 100°C)
• Seal Material: PTFE
• End Connection: Press connection
• Application: HVAC systems
