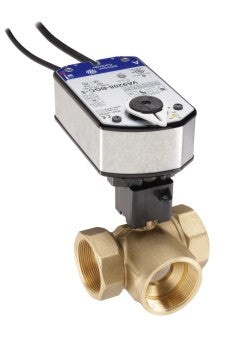

Johnson Controls VG1845FSH938GGC Ball Valve Assembly 3 Way 2 in.

Product Description

The Johnson Controls VG1845FSH938GGC is a three-way ball valve assembly designed for HVAC systems. This product features a forged brass body with a stainless steel ball and blowout-proof stem. The electric actuator provides a spring return of 177 lb-in. It operates on 24 VAC and has a proportional control of 0 to 10 VDC, ensuring reliable performance in various applications.

• Suitable for hot water and chilled water systems
• NPT connection with a flow coefficient of 46.8 Cv
• Ideal for use with a 50/50 glycol solution

Product Highlights

This ball valve assembly is durable and designed for optimal safety and efficiency in HVAC applications. Its robust construction and reliable performance make it a preferred choice for trade professionals.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1845FSH938GGC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage On The In-Line Port A and Linear Of The Angle Port B
• Operating Conditions: -40 F To 140 F
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
