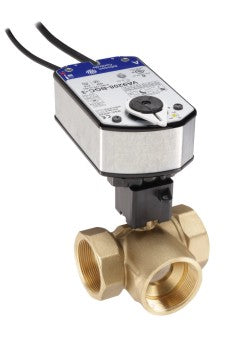

Johnson Controls VG1845FSH938BGA Ball Valve Assembly, 3 Way, 2 in.

Product Description

The Johnson Controls VG1845FSH938BGA is a three-way ball valve assembly designed for HVAC applications. This valve features a two-inch size connection and is engineered for durability and reliability.

• Maintenance-free design
• Operates efficiently in contaminated water conditions
• Electric actuator with spring return

Product Highlights

This product offers a 46.8 Cv flow coefficient and a reliable operation in hot water, chilled water, and glycol solutions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1845FSH938BGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution for HVAC systems
• Power Consumption: 6.1 VA running, 1.2 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage on the in-line port A (coil) and linear of the angle port B (bypass)
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Electrical Connection: 48 in. 18 AWG appliance cable with integral 3/8 in. FMC connectors
