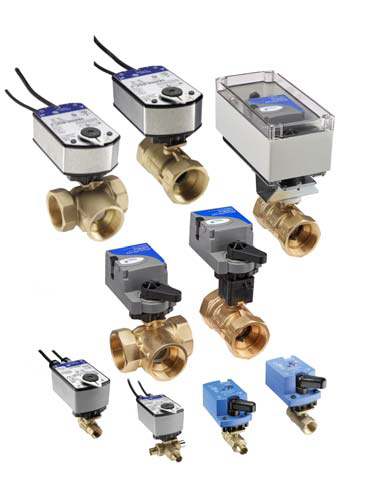

Johnson Controls VG1845FS+958GGC Ball Valve Assembly, 3 Way, 2 in.

Product Description

The Johnson Controls VG1845FS+958GGC is a three-way ball valve assembly designed for HVAC systems. This valve features a forged brass body and a stainless steel ball for durability and reliability. It operates using an electric actuator, providing efficient control over water flow.

• Blow-out proof stem enhances user safety.
• Compatible with hot water, chilled water, and glycol solutions.
• Designed for a variety of applications in HVAC systems.

Product Highlights

This valve assembly operates with a spring return of 177 lb-in and is powered by 24 VAC with a 0 to 10 VDC proportional control.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1845FS+958GGC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage on Port A, Linear on Port B
• Operating Conditions: -40 F to 140 F
• Electrical Connection: 48 in. Appliance Cable with 3/8 in. Connectors
